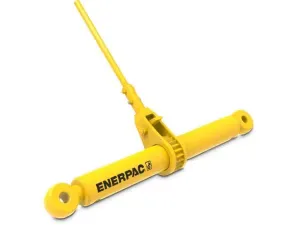

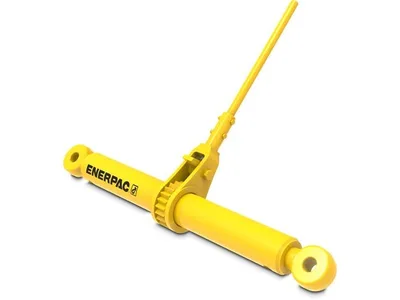

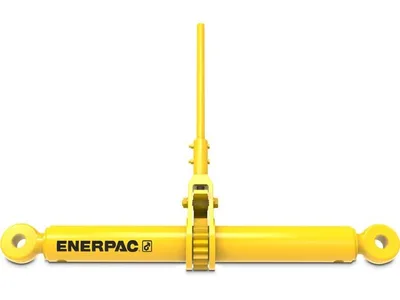

Enerpac SER30

Photo may not represent actual item. Refer to name and product specs for all details.

Simplex SER30 20 ton Loadbinder Jack

Enerpac Simplex SER30; 20 ton (177.9 kN) capacity, 660.4 mm (26 in) travel, mechanical loadbinder jack for pulling and pushing.

EnerpacMFR # SER30SKU # CEY-7B4B2D992E7E
Dimension G33,3 mm (1.31 in)
Dimension E47,5 mm (1.87 in)
Country of OriginChina
Dimension F19,1 mm (0.75 in)
Dimension D431,8 mm (17 in)
Dimension C762,0 mm (30 in)
Share
Have questions?Chat on WhatsApp

About This Product

SER30 is a mechanically operated loadbinder jack from the Simplex SER series. It delivers 20 ton (177.9 kN) of pulling or pushing force. It is equipped with a spring activated pawl and integrated handle and can be used in push or pull applications. Travel is 660.4 mm (26 in), barrel length 762 mm (30 in), barrel outside diameter 88.9 mm and screw diameter 50.8 mm. Eye-to-eye distance is 889 mm (35 in) minimum and 1549.4 mm (61 in) maximum. It is used in bridge construction and steel engineering, for connecting river barges and for pulling forms and steel plates together. The design is CE compliant and meets or exceeds ANSI/ASME B30.1 standards.

Features and Benefits

  • 20 ton (177.9 kN) pulling or pushing force
  • 660.4 mm (26 in) travel length
  • Spring activated pawl and integrated handle
  • Can be used in push or pull applications
  • Suited to bridge construction, steel engineering, barge connecting and pulling forms and plates
  • CE compliant; meets or exceeds ANSI/ASME B30.1 safety standards

Enerpac SER30

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Dimension G33,3 mm (1.31 in)
Dimension E47,5 mm (1.87 in)
Country of OriginChina
Dimension F19,1 mm (0.75 in)
Dimension D431,8 mm (17 in)
Dimension C762,0 mm (30 in)
Capacity177,9 kN (20 ton)
Dimension B1549,4 mm (61 in)
Eye to Eye (Minimum)35 in
Power SourceMechanical
Left/Right Screw Eye Inner Diameter33,3 mm (1.31 in)
Travel Length660,4 mm (26 in)
Eye to Eye Maximum61 in
Dimension I88,9 mm (3.5 in)
Barrel Length762,0 mm (30 in)
Screw Diameter50,8 mm (2 in)
Dimension H44,5 mm (1.75 in)
Pipe Barrel Outside Diameter88,9 mm (3.5 in)
Product TypeLoadbinder Jack
Eye to Eye Minimum889,0 mm
Left/Right Screw Eye Thickness47,5 mm (1.87 in)
SeriesSER
Radius44,5 mm (1.75 in)
Ratchet Socket Length19,1 mm (0.75 in)
Stroke660.4 mm (26 in)
Model Type20 Imperial Ton Capacity, 26 in. Stroke
Eye to Eye (Maximum)1549,4 mm
Left-Right Screw Length431,8 mm (17 in)
Dimension A889,0 mm (35 in)
Product LineMechanical Tools
Weight33,6 kg (74 lbs)

Documents & CAD

Series documents 1· shared by this product series

CertificateEC2B-MECHJACKS_RevH_June2022PDF·137 KB
