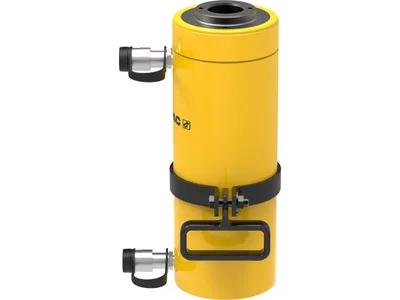

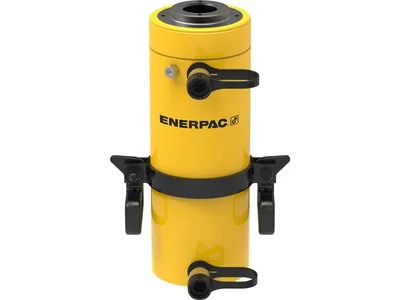

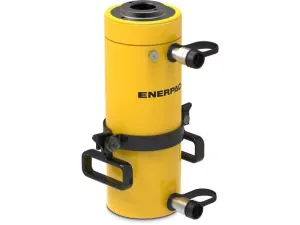

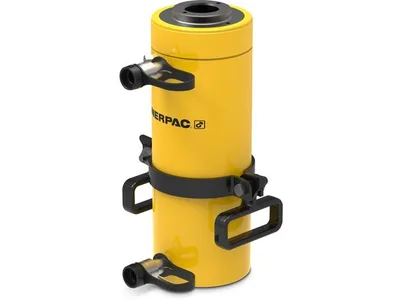

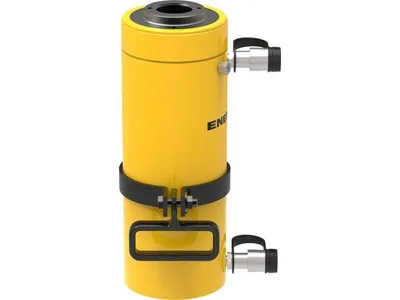

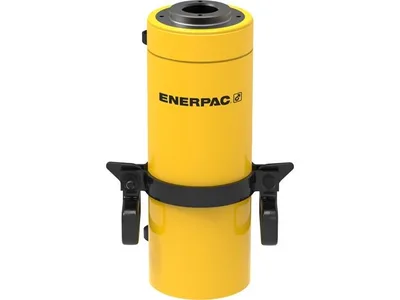

Enerpac RRH6010 60 ton Hollow Plunger Cylinder

Enerpac RRH6010; 60 ton capacity, 257 mm stroke, double-acting hollow plunger hydraulic cylinder rated up to 700 bar (10,000 psi).

EnerpacMFR # RRH6010SKU # CEY-55221B12C1E6

Cylinder Class60 ton

Stroke257 mm (10.12 in)

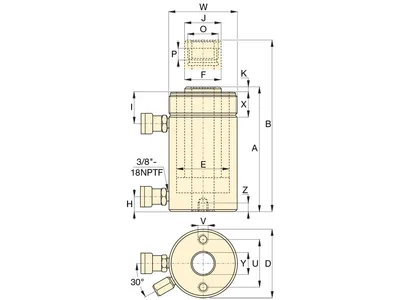

Collapsed Height (A)438 mm (17.25 in)

Outside Diameter D159 mm (6.25 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U130,0 mm (5.12 in)

Have questions?Chat on WhatsApp

About This Product

RRH6010 is a double-acting hollow plunger hydraulic cylinder from the RRH series. It has a 60 ton capacity, a 257 mm (10.12 in) stroke, a 438 mm collapsed height and a 159 mm outside diameter. The series is rated up to 700 bar (10,000 psi). Two connection ports supply hydraulic flow to both advance and retract the plunger, giving more controlled retraction than single-acting cylinders. The hollow plunger, base threaded holes and collar thread (6 1/4 in - 12) accept attachments that allow both push and pull forces. The base mounting holes are on a 130 mm bolt circle. The body is made of high-alloy steel with a baked enamel finish and weighs 45 kg. It is used for lifting, lowering, pushing, pulling and tensioning, as well as testing applications.

Features and Benefits

Double-acting operation for fast, controlled retraction
Hollow plunger allows both push and pull forces
Relief valves prevent damage from over-pressurization
Collar threads and base holes enable easy fixturing
Nickel-plated floating center tube and plunger wiper extend product life
CR-400 couplers and dust caps included

Enerpac RRH6010

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class60 ton

Stroke257 mm (10.12 in)

Collapsed Height (A)438 mm (17.25 in)

Outside Diameter D159 mm (6.25 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U130,0 mm (5.12 in)

Collar Thread (W)6 1/4" - 12 (6¼"- 12)

Surface TreatmentPaint

Weight45 kg (101 lbs)

Oil Capacity (Advance)2115 cm³ (128.94 in³)

Base Mounting Holes Thread Depth Z14,0 mm (0.55 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)1393 cm³ (84.49 in³)

ApplicationsLift, Lower, Push, Pull, Tension

Base Mounting Holes Thread V½” - 13

Maximum Cylinder Capacity (Advance)576 kN (64 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)123,9 mm (4.88 in)

Product TypeHollow Plunger Cylinder

SeriesRRH

Plunger Internal Thread2 3/4" - 16

Base to Advance Port H31 mm (1.25 in)

Model Type60 Ton Capacity, 10.12 in. Stroke

Max. Cylinder Retract Capacity42 ton

Product LineIndustrial Tools

Maximum Cylinder Capacity (Retract)380 kN

Top to Retract Port (I)66 mm (2.63 in)

Plunger Internal Thread O2 3/4"- 16

Saddle Diameter J91 mm (3.61 in)

Country of OriginChina

Collar Thread Length (X)48 mm (1.91 in)

Center Hole Diameter Y53,8 mm (2.13 in)

Saddle Diameter J191 mm

Extended Height (B)695 mm (27.38 in)

Cylinder Effective Area (Advance)82,3 cm² (12.73 in²)

Cylinder Effective Area (Retract)54,2 cm²

Plunger TypeHollow

Cylinder Effective Area (Retract)8.37 in²

Cylinder MaterialSteel

Saddle Protrusion from Plunger K12 mm (0.5 in)

Saddle Protrusion from Plunger K112 mm

Plunger Thread Length (P)19 mm (0.75 in)

Plunger Diameter F91,9 mm (3.63 in)
