How can I get a price quote for Enerpac PUJ1401B?

You can request a fast quote for Enerpac PUJ1401B from Yılsa Engineering. Reference part number CEY-8EF3B033E2F7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PUJ1401B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PUJ1401B genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PUJ1401B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

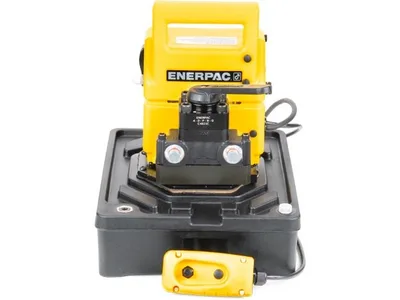

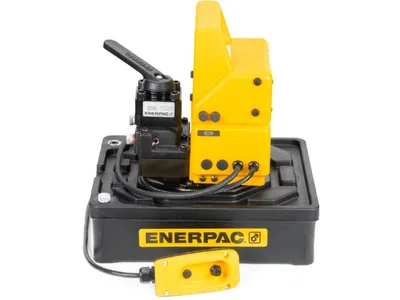

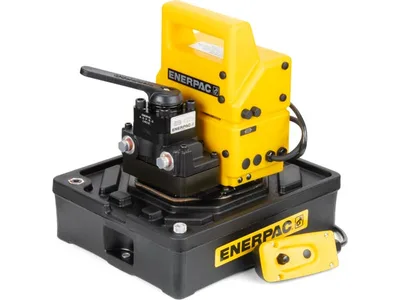

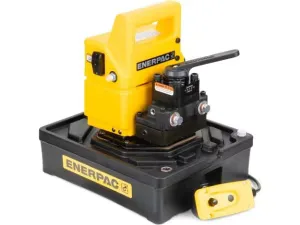

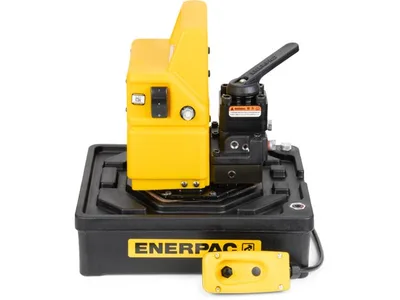

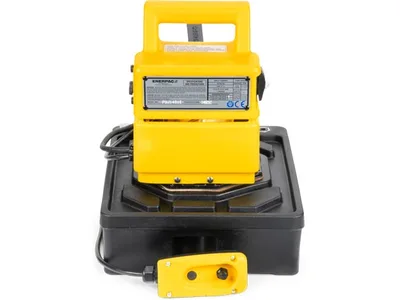

Enerpac PUJ1401B 700 bar Electric Hydraulic Pump

Enerpac PUJ1401B; 700 bar (10,000 psi), 115 V, two-speed economy electric hydraulic pump with 4/3 manual valve, for double-acting cylinders.

EnerpacMFR # PUJ1401BSKU # CEY-8EF3B033E2F7

Dimension E130 mm (5.12 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F323 mm (12.74 in)

Have questions?Chat on WhatsApp

About This Product

PUJ1401B is a two-speed, economy-class electric hydraulic pump from the PU series. Maximum operating pressure is 700 bar (10,000 psi), and it is driven by a 115 V, 50/60 Hz universal motor. It is designed for small to medium double-acting cylinders and hydraulic tools. The 4/3 manual valve provides advance / hold / retract functions. First-stage flow is 200 in³/min (about 3.3 L/min) and second-stage flow is 0.32 L/min (20 in³/min). Reservoir capacity is 231 in³ (about 3.8 L) with 1 gal (about 3.8 L) usable oil. The pump is supplied with a 3 m (10 ft) cord and control pendant. It is suited to intermittent duty and, being lightweight and portable, is used in workshop and field applications.

Features and Benefits

Economical choice for small to medium sized tools
Two-speed operation reduces cycle times
Lightweight, compact and portable
115 VAC 50/60 Hz universal motor operates under poor voltage supply; works with long extension cords or generators
24 VAC remote control with 3 m (10 ft) cord for operator safety
Starts under full load; high-strength shroud with integral handle protects the motor

Enerpac PUJ1401B

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E130 mm (5.12 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F323 mm (12.74 in)

Dimension D105 mm (4.15 in)

Maximum Flow at Rated Pressure0.32 l/min (20 in3/min · 0,32 l/min · 20 in³/min)

Dimension C373 mm (14.72 in)

Motor Electrical Specification115 V, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Hold / Retract

Dimension B309 mm (12.18 in)

Output Flow Rate 2nd Stage0,32 l/min (20 in³/min)

Motor Voltage115 V V

Usable Oil Capacity3,8 l (1 gal)

Pump ControlPendant

Dimension J142 mm (5.62 in)

Dimension H10.16 mm (0.4 in)

1st Stage Pressure Rating13 bar (200 psi)

Product TypeElectric Pump - Economy

Duty CycleIntermittent

Reservoir Capacity3800 cm³ (231 in³)

Sound Level85 dB(A)

Valve OperationManual

Pump Valve Type4-way, 3-position

Motor Size0.5 hp

SeriesPU

Pump Power SourceElectric

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Current Draw9.5 A

Cylinder CompatibilityDouble-acting

Dimension A368 mm (14.5 in)

Product LineIndustrial Tools

Weight18,6 kg (36 lbs)

Documents & CAD

For this product 1

DocumentService Instructions - PUJ/PUM-1400B AND PUJ/PUM-1400EPDF·64 KB·English

Series documents 5· shared by this product series

Instruction Manual1/2 HP Portable Electric PumpsPDF·8.3 MB 4 languages· in one file

Repair Parts SheetPUJ1400B, PUJ1401B, PUJ1400E, PUJ1401E, 1/2 HP Portable Electric PumpsPDF·633 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePU-Series Economy Electric Pumps; EnglishPDF·324 KB
