How can I get a price quote for Enerpac ZC3408JB?

You can request a fast quote for Enerpac ZC3408JB from Yılsa Engineering. Reference part number YLSTA6KC2WJYTCV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZC3408JB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZC3408JB genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZC3408JB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

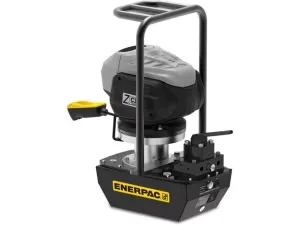

Enerpac ZC3408JB 700 bar Cordless Hydraulic Pump

Enerpac ZC3408JB; 700 bar (10,000 psi), 0.52 l/min loaded flow, 6.6 L (1.75 gal) usable oil, 4/3 valve, 82V lithium-ion cordless hydraulic pump, 115V model.

EnerpacMFR # ZC3408JBSKU # YLSTA6KC2WJYTCV

Output Flow Rate (No Load)5,08 l/min (310 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,52 l/min (32 in³/min)

Country of OriginUnited States

Reservoir Size Range4,0 - 7,9 l

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

ZC3408JB is an Enerpac ZC-Series cordless hydraulic pump. It combines the performance of an electric pump with the portability of a battery pump and runs on a rechargeable 82V lithium-ion battery. Battery and charger are included; this is the 115V model. Maximum operating pressure is 700 bar (10,000 psi), loaded flow is 0.52 l/min (32 in³/min) and no-load flow is 5.08 l/min (310 in³/min). With 1.75 gal (about 6.6 L) usable oil capacity, it has a brushless 1.36 hp motor and a 3-stage pump. The valve is 4-way, 3-position, tandem center and manually operated (Advance / Neutral / Retract), controlled from a pendant. It suits applications where electricity or air is not readily available and where emissions and noise are a concern. Maximum noise level is 80 dBA and duty cycle is intermittent.

Features and Benefits

Cordless design removes the need for a generator or electrical source
Brushless 1.36 hp motor and 3-stage pump minimize heat build-up and downtime
82V Li-ion battery: about 50 cycles on an RC1006 or 90 cycles on an RC504 per charge
700 bar maximum pressure; 0.52 l/min loaded flow
3 m (10 ft) pendant cord for easy control
80 dBA maximum noise level; zero-emission hydraulic power pack

Enerpac ZC3408JB

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)5,08 l/min (310 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate at Load0,52 l/min (32 in³/min)

Country of OriginUnited States

Maximum Flow at Rated Pressure0.52 l/min (32 in3/min · 0,52 l/min · 32 in³/min)

Reservoir Size Range4,0 - 7,9 l

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Neutral / Retract

Usable Oil Capacity6,6 l (1.75 gal · 404.25 in³)

Pump ControlPendant

Reservoir Capacity6,6 l (1.75 gal)

Product TypeCordless Pump - Battery

Duty CycleIntermittent

Reservoir Capacity6600 cm³ (404.25 in³)

Valve OperationManual

Pump Valve Type4-way, 3-position, Tandem Center

Motor Size1,0 kW (1.4 hp)

SeriesZC

Pump Power SourceBattery

Flow Rate Range at Rated Pressure0,35 - 0,64 l/min (21 - 39 in³/min)

Output Flow Rate (276 bar)1,31 l/min

Output Flow Rate @ 700 bar0,52 l/min

Charger Voltage115 V

Number of Outlets2

Cylinder CompatibilityDouble-acting

Output Flow Rate at 4000 psi80 in³/min

Valve ModelVM43

Product LineIndustrial Tools

Weight29,7 kg (65.5 lbs)

Documents & CAD

For this product 1

CertificateZC-Pump_Battery_Safety_Data_Sheet_Briggs_and_Stratton_ENPDF·223 KB·English

Series documents 2· shared by this product series

CertificateEC2B-ZC_RevD_Oct2022PDF·404 KB

BrochureZC-Series Cordless Battery Pumps; EnglishPDF·497 KB

Alternative Names & Search Terms

ZC3408JBZC 3408 JBZC-3408-JBZC3408 JBEnerpac ZC3408JBZC3408JB pumpZC3408JB cordless pumpZC3408JB hydraulic pumpEnerpac ZC seriesEnerpac ZC-Series cordless pump700 bar cordless hydraulic pump82V cordless hydraulic pumppendant controlled battery hydraulic pump4/3 valve cordless hydraulic pump1.75 gallon cordless hydraulic pump115V cordless hydraulic pumpEnerpac battery hydraulic power pack10,000 psi battery hydraulic pump
