How can I get a price quote for Enerpac RD43?

You can request a fast quote for Enerpac RD43 from Yılsa Engineering. Reference part number CEY-7B4B2D9A0ABB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RD43 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RD43 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RD43?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

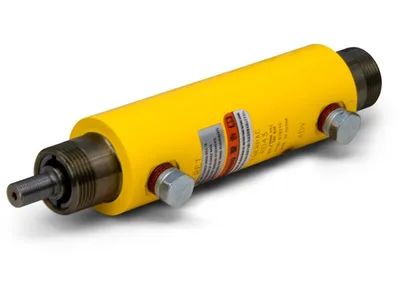

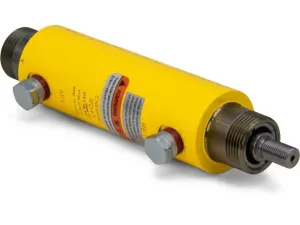

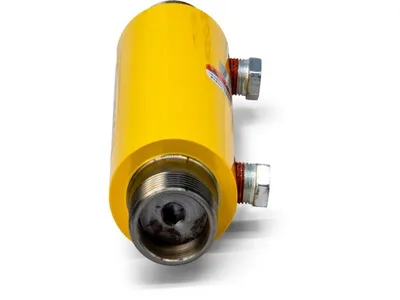

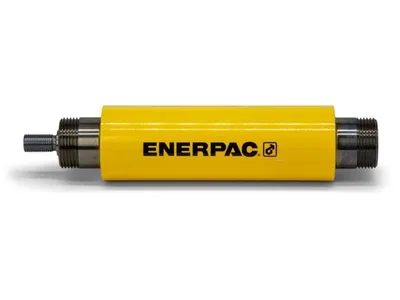

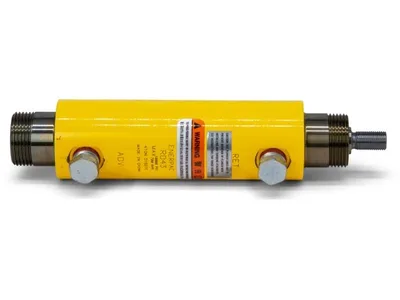

Enerpac RD43 4 ton Hydraulic Cylinder

Enerpac RD43; 4 ton (36 kN) capacity, 79 mm (3.13 in) stroke, 700 bar, double-acting general purpose hydraulic cylinder.

EnerpacMFR # RD43SKU # CEY-7B4B2D9A0ABB

Oil Capacity (Advance)40 cm³ (2.45 in³)

Clevis Eye Mounting Dimension M41 mm (1.61 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)17 cm³ (1.07 in³)

ApplicationsLift, Lower, Push, Pull

Maximum Cylinder Capacity (Advance)4 ton

Have questions?Chat on WhatsApp

About This Product

RD43 is a double-acting general purpose hydraulic cylinder from the Enerpac RD series. It offers 4 ton (36 kN) advance capacity, a stroke of approximately 79 mm (3.13 in) and a maximum operating pressure of 700 bar (10,000 psi). Retract capacity is 2 tons. The cylinder has a 25.4 mm bore, 50 mm outside diameter, 213 mm body length and weighs approximately 2.9 kg (6.4 lb). Oil capacity is 40 cm³ on advance and 17 cm³ on retract. The plunger outside thread is 1/2 in - 20. The surface is painted. It is used for lifting, lowering, pushing and pulling in production lines and workholding applications.

Features and Benefits

Designed for long life, a good choice for production applications
Unique mounting configurations simplify fixturing
Baked enamel finish increases corrosion resistance
Double-acting operation develops force in both directions for versatility
Plunger wiper reduces contamination and extends cylinder life

Enerpac RD43

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)40 cm³ (2.45 in³)

Clevis Eye Mounting Dimension M41 mm (1.61 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)17 cm³ (1.07 in³)

ApplicationsLift, Lower, Push, Pull

Maximum Cylinder Capacity (Advance)4 ton

Outside Diameter D50 mm (2 in)

Clevis Eye Mounting Dimension L1387 mm (15.25 in)

Coupler Used-

Cylinder Bore Diameter (E)25,4 mm (1 in)

Product TypeGeneral Purpose Cylinder

Neck Length (N)29 mm

Body Length C213 mm (8.38 in)

Plunger Protrusion (K)24 mm

SeriesRD

Bottom to Advance Port (I)47 mm

Top to Retract Port (H)47 mm

Base to Advance Port H1.88 in

Cylinder Capacity Advance at 5000 psi3900 lbs

Max. Cylinder Retract Capacity2 ton

Product LineIndustrial Tools, Workholding Tools

Plunger Outside Thread (Q)1/2" - 20

Weight2,6 kg (6.4 lbs)

Top to Retract Port (I)1.88 in

Surface TreatmentPaint

Cylinder Class4 ton

Country of OriginChina

Neck Length N1.13 in

Clevis Eye Mounting Dimension L308 mm (12.12 in)

Collar Thread Length (X)11 mm (0.44 in)

Plunger External Thread Q1/2" - 20

Extended Height (B)316 mm (12.44 in)

Cylinder Effective Area (Advance)5,1 cm² (0.79 in²)

Cylinder Effective Area (Retract)2,2 cm²

Top to Return Port H47 mm (1.88 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)0.34 in²

Collapsed Height (A)237 mm (9.31 in)

Cylinder MaterialSteel

Bottom to Advance Port I1.88 in

Internal Base Thread Length Z10.35 in

Collar Thread (W)1 3/8" - 12

Retract Capacity at 350 bar7,7 kN

Internal Base Thread Length (Z1)9 mm

Stroke79 mm (3.13 in)

Cylinder Retract Capacity (5000 psi)1720 lbs

Cylinder Capacity at 350 bar (Advance)17,4 kN

Minimum Operating Pressure35 bar

Plunger Thread Length (P)22 mm (0.75 in)

Internal Base Thread Z1 1/8"-20

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F19,0 mm (0.75 in)

Link Width N1.13 in

Plunger Protrusion K0.94 in

Internal Base Thread (Z)1 1/8"-20

Saddle Protrusion from Plunger K0.94 in

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualRD & BRD Series JacksPDF·109 KB·English

Instruction ManualRD / BRD Hydraulic CylindersPDF·2.4 MB 4 languages· in one file

Repair Parts SheetParts Kits (Europe Only)PDF·237 KB·English

Repair Parts SheetCylinder - 4 TonPDF·83 KB·English

2D DrawingRD43 drawingPDF·340 KB

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB

CAD Files 5

3D Model
