How can I get a price quote for Enerpac AD150?

You can request a fast quote for Enerpac AD150 from Yılsa Engineering. Reference part number CEY-937FC77CF843. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac AD150 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac AD150 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac AD150?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

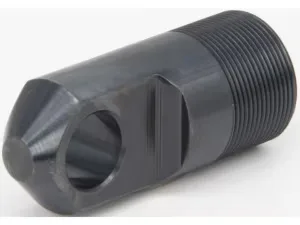

Enerpac AD150 4 ton Clevis Eye

Enerpac AD150; 4 ton class clevis eye with .500-20 UNF and 1.125-20 UN threads for RD series cylinders, threads onto plunger or into cylinder base.

EnerpacMFR # AD150SKU # CEY-937FC77CF843

Dimension E15.7 mm (0.62 in)

Country of OriginUnited States

Dimension F19 mm (0.75 in)

Dimension D16 mm (0.63 in)

Compatible Cylinder SeriesRD

Dimension C52 mm (2.06 in)

Have questions?Chat on WhatsApp

About This Product

AD150 is a clevis eye from the Enerpac AD series of cylinder accessories. It is designed for 4 ton class RD series cylinders. It threads onto the plunger or into the cylinder base to create a pinned connection point. Dimensions are as follows: A .500-20 UNF, B 1.125-20 UN, C 52 mm (2.06 in), D 16 mm (0.63 in), E 15.7 mm (0.62 in), F 19 mm (0.75 in), H 23.9 mm (0.94 in). Country of origin is the United States. It is used in industrial tool and workholding applications. It is a common choice for connecting the cylinder to pivoting mechanisms in push or pull setups.

Features and Benefits

Compatible with 4 ton class RD series cylinders
Threads onto plunger or into cylinder base
Enables pinned, pivoting connections
.500-20 UNF and 1.125-20 UN thread sizes
Made in the United States

Enerpac AD150

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E15.7 mm (0.62 in)

Country of OriginUnited States

Dimension F19 mm (0.75 in)

Dimension D16 mm (0.63 in)

Compatible Cylinder SeriesRD

Dimension C52 mm (2.06 in)

Dimension B1.125-20 UN mm

Dimension H23.9 mm (0.94 in)

Product TypeClevis Eye

SeriesAD

Capacity Class4 ton

For Use with Cylinder Capacity4 ton

Dimension A.500-20 UNF mm

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

For this product 1

2D DrawingAD150 drawingPDF·46 KB

Series documents 1· shared by this product series

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB

CAD Files 3

3D Model
