How can I get a price quote for Enerpac RCH1003?

You can request a fast quote for Enerpac RCH1003 from Yılsa Engineering. Reference part number CEY-8EF3B033E9AA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RCH1003 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RCH1003 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RCH1003?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

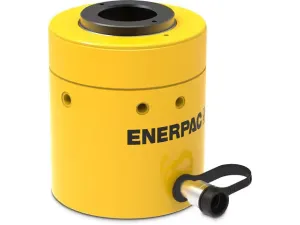

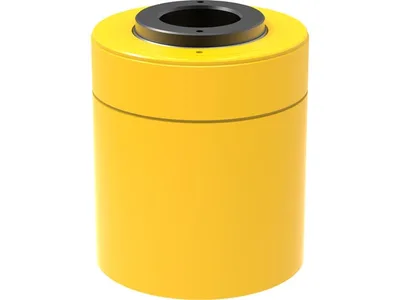

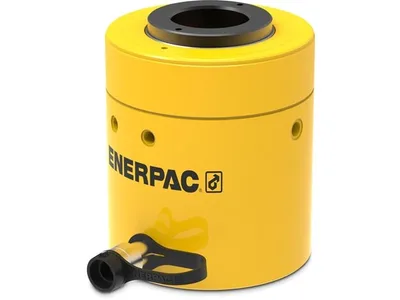

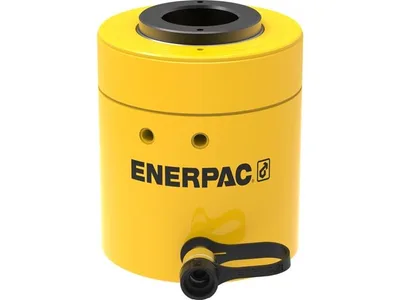

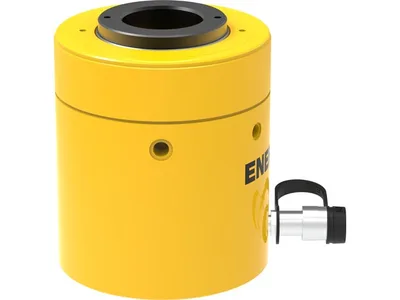

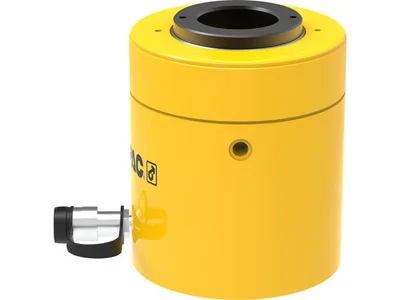

Enerpac RCH1003 103.1 ton Hollow Cylinder

Enerpac RCH1003; 103.1 ton capacity (100 ton class), 76 mm stroke, 700 bar (10,000 psi), single-acting spring-return hollow plunger hydraulic cylinder.

EnerpacMFR # RCH1003SKU # CEY-8EF3B033E9AA

Cylinder Class100 ton

Stroke76 mm (3 in)

Collapsed Height (A)254 mm (10 in)

Outside Diameter D212 mm (8.38 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U177,8 mm (7.00 in)

Have questions?Chat on WhatsApp

About This Product

RCH1003 is a single-acting, spring-return hollow plunger hydraulic cylinder from the RCH series. It offers 103.1 ton capacity (100 ton cylinder class) and 76 mm stroke, with a 700 bar (10,000 psi) pressure rating. Collapsed height is 254 mm, outside diameter is 212 mm and weight is 63 kg. Base mounting holes are on a 177.8 mm bolt circle; collar thread is 8 3/8" - 12. The surface is painted. The hollow plunger design allows push, pull, lift and tension applications, used in testing, maintenance and tensioning work. It comes with a CR400 coupler.

Features and Benefits

Hollow plunger design provides both push and pull force
Single-acting spring return
Nickel-plated floating center tube on models over 20 tons increases product life
Baked enamel finish increases corrosion resistance
Collar threads and base mounting holes for easy fixturing
Comes with CR400 coupler

Enerpac RCH1003

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class100 ton

Stroke76 mm (3 in)

Collapsed Height (A)254 mm (10 in)

Outside Diameter D212 mm (8.38 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U177,8 mm (7.00 in)

Collar Thread (W)8 3/8" - 12

Surface TreatmentPaint

Weight63,0 kg (132 lbs)

Oil Capacity (Advance)1011 cm³ (61.88 in³)

Base Mounting Holes Thread Depth Z19,0 mm (0.75 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push, Pull, Tension

Base Mounting Holes Thread V5/8"-11 unc

Maximum Cylinder Capacity (Advance)931 kN (103.1 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)165,1 mm (6.5 in)

Product TypeHollow Plunger Cylinder

SeriesRCH

Plunger Internal Thread4" - 16 un

Base to Advance Port H38 mm (1.5 in)

Model Type103.1 Ton, 3" Stroke, 3.11" Hole Diam.

Product LineIndustrial Tools

Plunger Internal Thread O4" - 16 un

Saddle Diameter J126 mm (4.97 in)

Country of OriginChina

Collar Thread Length (X)60 mm (2.38 in)

Center Hole Diameter Y79,0 mm (3.11 in)

Saddle Diameter J1126 mm

Extended Height (B)330 mm (13 in)

Cylinder Effective Area (Advance)133,0 cm² (20.63 in²)

Plunger TypeHollow

Cylinder MaterialSteel

Saddle Protrusion from Plunger K12,0 mm (0.5 in)

Saddle Protrusion from Plunger K112,0 mm

Plunger Thread Length (P)25 mm (1 in)

Plunger Diameter F127,0 mm (5 in)

Set IncludesCR400

Documents & CAD

For this product 1

2D DrawingRCH1003 drawingPDF·62 KB

Series documents 4· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRCH - Cylinder - 100 Ton Hollow RPSPDF·218 KB·English

BrochureRCH-Series Hollow Plunger Cylinders; EnglishPDF·323 KB

CAD Files 3

3D Model
