How can I get a price quote for Enerpac RC59?

You can request a fast quote for Enerpac RC59 from Yılsa Engineering. Reference part number CEY-937FC7807562. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RC59 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RC59 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RC59?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

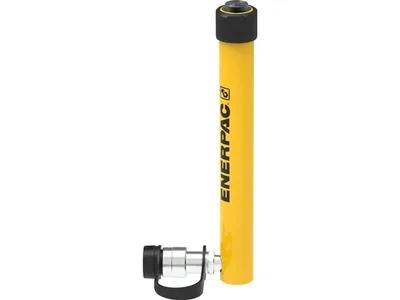

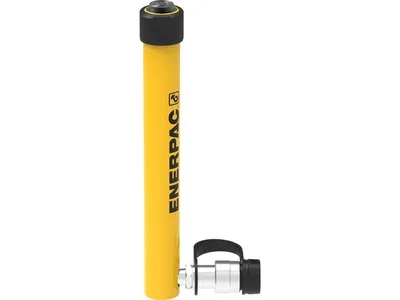

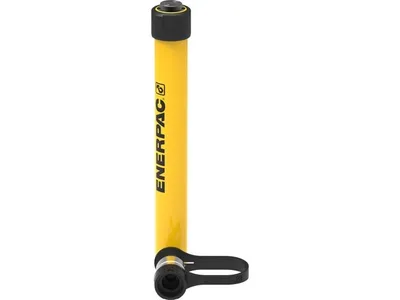

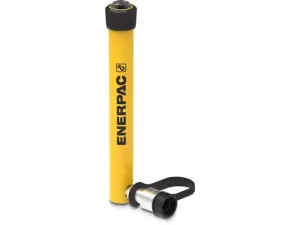

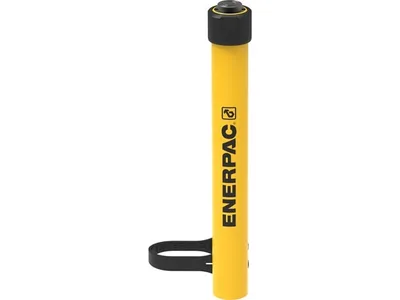

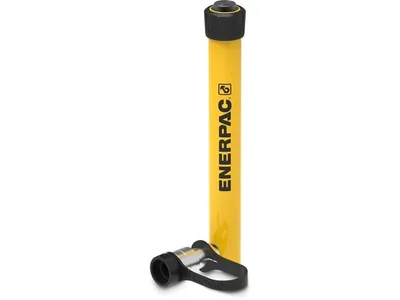

Enerpac RC59 4.9 ton 232 mm Stroke Cylinder

Enerpac RC59; 4.9 ton capacity, 232 mm stroke, single-acting spring-return general purpose hydraulic cylinder.

EnerpacMFR # RC59SKU # CEY-937FC7807562

Cylinder Class5 ton

Stroke232 mm (9.13 in)

Collapsed Height (A)324 mm (12.75 in)

Outside Diameter D38 mm (1.5 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U25 mm (1 in)

Have questions?Chat on WhatsApp

About This Product

RC59 is a general purpose, single-acting, spring-return hydraulic cylinder from the RC series. It has a capacity of 4.9 tons and a stroke of 232 mm. Collapsed height is 324 mm, outside diameter is 38 mm and weight is 2.8 kg. Base mounting holes (25 mm bolt circle) and a collar thread (1 1/2 in - 16 UN) make fixturing easier. The body is painted, and the cylinder includes a CR400 coupler and dust cap. It is designed for lifting and pushing applications and can be used in all positions.

Features and Benefits

Bearing system with composite wear bands resists side loads
Trio Hybrid pre-tensioned spring system for faster retraction
High-grade polyethylene seals and plunger wiper for long service life
Base mounting holes plus collar and plunger threads for easy fixturing
Designed for use in all positions
CR400 coupler and dust cap included

Enerpac RC59

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class5 ton

Stroke232 mm (9.13 in)

Collapsed Height (A)324 mm (12.75 in)

Outside Diameter D38 mm (1.5 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U25 mm (1 in)

Collar Thread (W)1 1/2" - 16 UN

Surface TreatmentPaint

Weight2,8 kg (6.1 lbs)

Oil Capacity (Advance)151 cm³ (9.07 in³)

Base Mounting Holes Thread Depth Z14 mm (0.56 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V1/4"- 20 un

Maximum Cylinder Capacity (Advance)45 kN (4.9 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)28,6 mm (1.13 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal Thread3/4" - 16

Base to Advance Port H19 mm (0.75 in)

Model Type4.9 Ton Capacity, 9.13 in. Stroke

Product LineIndustrial Tools

Saddle Diameter J25 mm (1 in)

Country of OriginChina

Collar Thread Length (X)28 mm (1.13 in)

Saddle Diameter J125 mm

Extended Height (B)556 mm (21.88 in)

Cylinder Effective Area (Advance)6,4 cm² (0.99 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Saddle Protrusion from Plunger K6 mm (0.25 in)

Saddle Protrusion from Plunger K16 mm

Plunger Thread Length (P)16 mm (0.63 in)

Plunger Diameter F25,4 mm (1 in)

Documents & CAD

For this product 1

2D DrawingRC59 drawingPDF·38 KB

Series documents 6· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetParts Kits (Europe Only)PDF·216 KB·English

Repair Parts SheetCylinder - 5 TonPDF·43 KB·English

Repair Parts SheetRPS for RC-51, RC-53, RC-55, RC-57 & RC-59 Hydraulic CylindersPDF·370 KB·English

BrochureRC-Series General Purpose Cylinders; EnglishPDF·591 KB

CAD Files 3

3D Model
