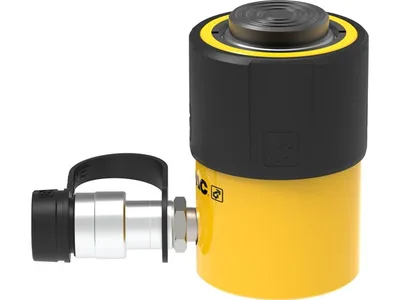

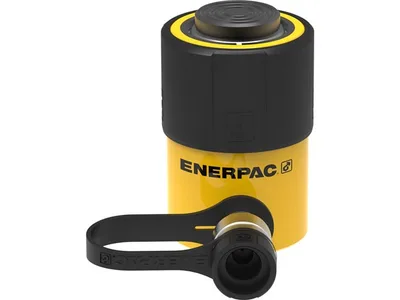

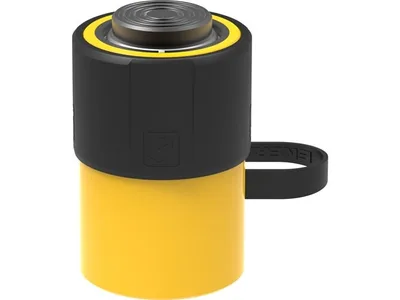

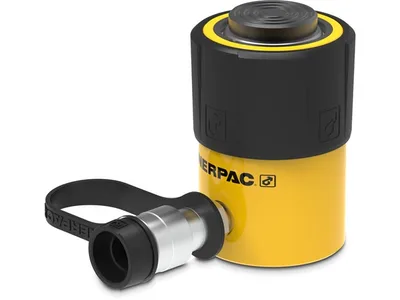

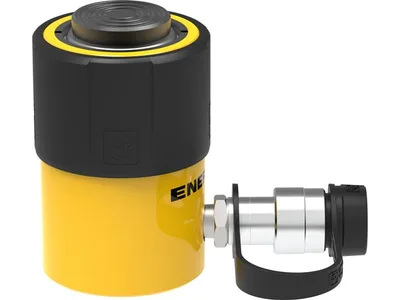

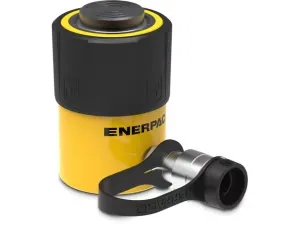

Enerpac RC251 25.8 ton 26 mm Cylinder

Enerpac RC251; 25.8 ton capacity, 26 mm (1.00 in) stroke, single-acting spring-return general purpose hydraulic cylinder.

EnerpacMFR # RC251SKU # CEY-937FC780710E

Cylinder Class25 ton

Stroke26 mm (1 in)

Collapsed Height (A)140 mm (5.5 in)

Outside Diameter D86 mm (3.38 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U59 mm (2.31 in)

Have questions?Chat on WhatsApp

About This Product

RC251 is a single-acting, spring-return general purpose hydraulic cylinder from the Enerpac RC series. It has 25.8 ton capacity, 26 mm stroke, 140 mm collapsed height, 86 mm outside diameter and weighs 5.9 kg. A bearing system with composite wear bands and a strengthened stop ring improve side load resistance, while the Trio hybrid pre-tensioned spring system gives faster retraction. Collar thread is 3 5/16"-12 UN and the base mounting holes are on a 59 mm bolt circle. It is used for lifting and pushing applications and is designed for use in all positions. A CR400 coupler and dust cap are included.

Features and Benefits

Bearing system with composite wear bands for optimal side load resistance
Strengthened stop ring improves durability
Trio hybrid pre-tensioned spring system for faster retraction
High-grade polyethylene seals for low wear and long service life
Collar threads and base mounting holes enable easy fixturing
Includes CR400 coupler and dust cap; baked enamel finish

Enerpac RC251

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class25 ton

Stroke26 mm (1 in)

Collapsed Height (A)140 mm (5.5 in)

Outside Diameter D86 mm (3.38 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U59 mm (2.31 in)

Collar Thread (W)3 5/16" - 12 UN

Surface TreatmentPaint

Weight5,9 kg (13 lbs)

Oil Capacity (Advance)86 cm³ (5.16 in³)

Base Mounting Holes Thread Depth Z19 mm (0.75 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V1/2"- 13 un

Maximum Cylinder Capacity (Advance)232 kN (25.8 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)65,1 mm (2.56 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal Thread1 1/2" - 16

Base to Advance Port H25 mm (1 in)

Model Type25.8 Ton Capacity, 1 in. Stroke

Optional Tilt Saddle Diameter (J1)1.97 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J51 mm (1.97 in)

Country of OriginChina

Collar Thread Length (X)49 mm (1.94 in)

Saddle Diameter J150 mm

Extended Height (B)166 mm (6.5 in)

Cylinder Effective Area (Advance)33,3 cm² (5.16 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)15 mm (0.59 in)

Saddle Protrusion from Plunger K10 mm (0.41 in)

Saddle Protrusion from Plunger K110 mm

Plunger Thread Length (P)25 mm (1 in)

Plunger Diameter F57,2 mm (2.25 in)
