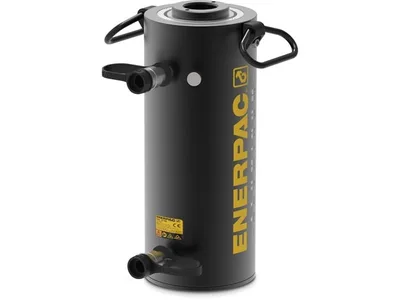

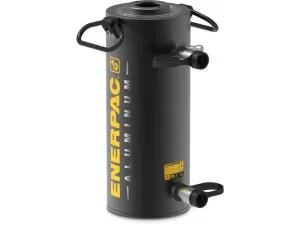

Enerpac RARH6010 60 ton 250 mm Hollow Cylinder

Enerpac RARH6010; 60 ton, 250 mm stroke, 700 bar, double-acting aluminum hollow plunger hydraulic cylinder.

EnerpacMFR # RARH6010SKU # YLSJ3LUJ2FYTP0S

Oil Capacity (Advance)2124 cm³ (129.54 in³)

Base Mounting Holes Thread Depth Z12 mm (0.47 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)943 cm³ (57.49 in³)

Base Mounting Holes Thread VM6

Maximum Cylinder Capacity (Advance)595 kN (66.81 ton)

Have questions?Chat on WhatsApp

About This Product

RARH6010 is a double-acting aluminum hollow plunger hydraulic cylinder from the RARH series. It has a 60 ton capacity class, a 250 mm (9.84 in) stroke and a maximum operating pressure of 700 bar (10,150 psi). Retract force is 264 kN and weight is approximately 27.5 kg (60.7 lb). Extended height is 696 mm, with a 180 mm outside diameter and a 130 mm cylinder bore. Oil capacity is 2124 cm³ on advance and 943 cm³ on retract. The plunger internal thread is 2 3/4"-16 UN, the saddle diameter is 92 mm and the center hole is 54 mm; base mounting holes are M6 with a 12 mm thread depth. The hollow plunger design allows both push and pull applications. It is used in lifting, pressing and pulling work in industrial hydraulic systems, with 700 bar systems using CR400 couplers.

Features and Benefits

Lighter and shorter collapsed height than equivalent RACH single-acting models
Double-acting design for rapid retraction regardless of hose length or system losses
Built-in safety valve prevents accidental overpressurization
Hollow plunger design provides both push and pull force
Composite bearings increase cylinder life and side load resistance; hard coat finish protects all surfaces
Steel baseplate and saddle with integral stop ring to prevent plunger over-travel; handles included

Enerpac RARH6010

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)2124 cm³ (129.54 in³)

Base Mounting Holes Thread Depth Z12 mm (0.47 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)943 cm³ (57.49 in³)

Base Mounting Holes Thread VM6

Maximum Cylinder Capacity (Advance)595 kN (66.81 ton)

Outside Diameter D180 mm (7.09 in)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)130 mm (5.12 in)

Product TypeAluminum Hollow Plunger Cylinder

SeriesRARH

Plunger Internal Thread2 3/4"-16 UN

Base to Advance Port H48 mm (1.88 in)

Max. Cylinder Retract Capacity29.65 ton

Product LineIndustrial Tools

Maximum Cylinder Capacity (Retract)264 kN

Weight27,6 kg (60.7 lbs)

Top to Retract Port (I)83 mm (3.28 in)

Plunger Internal Thread O2 3/4"-16 UN

Saddle Diameter J92 mm (3.61 in)

Surface TreatmentAnodized

Cylinder Class60 ton

Center Hole Diameter Y54 mm (2.13 in)

Extended Height (B)696 mm (27.4 in)

Cylinder Effective Area (Advance)84,9 cm² (13.17 in²)

Cylinder Effective Area (Retract)37,7 cm²

Plunger TypeHollow

Cylinder Effective Area (Retract)5.84 in²

Collapsed Height (A)446 mm (17.56 in)

Cylinder MaterialAluminum

Stroke250 mm (9.84 in)

Saddle Protrusion from Plunger K13 mm (0.5 in)

Plunger Thread Length (P)20 mm (0.79 in)

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F110 mm (4.33 in)

Base Mounting Holes Bolt Circle U160 mm (6.3 in)

Documents & CAD

For this product 1

Repair Parts SheetRARH Aluminum CylindersPDF·1.1 MB·English

Series documents 2· shared by this product series

CertificateEC2A-CYL-RARH_RevC_June2022PDF·131 KB

BrochureRARH-Series Lightweight Hollow Plunger Cylinders; EnglishPDF·329 KB
