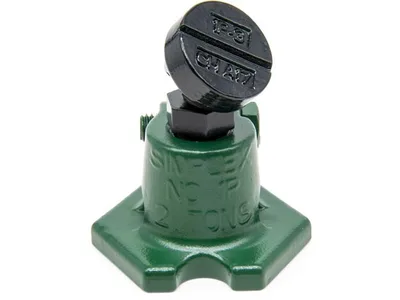

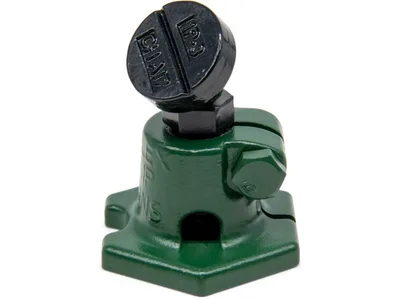

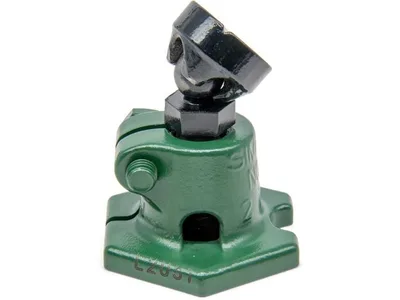

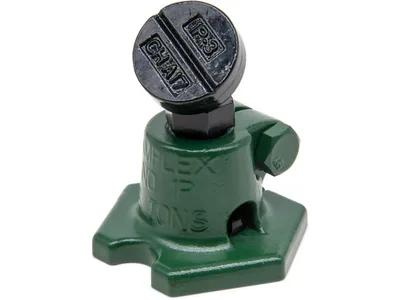

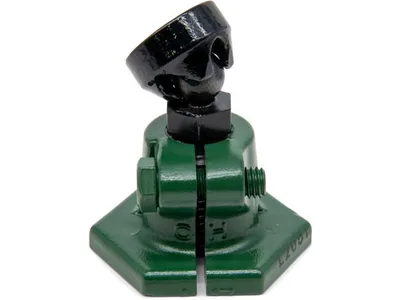

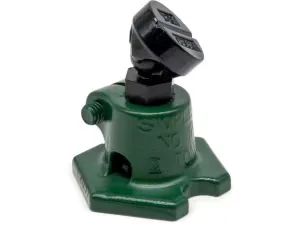

Enerpac PJ1P 2 ton Planer Jack

Enerpac PJ1P; 2 ton (17.8 kN) sustaining capacity, 25.4 mm stroke, 95.3 mm max. height mechanical screw planer jack.

EnerpacMFR # PJ1PSKU # CEY-7B4B2D993902

Dimension E69,9 mm (2.75 in)

Hex Across Flats19,1 mm (0.75 in · 2.38 in)

Country of OriginChina

Dimension F19,1 mm (0.75 in)

Dimension D31,8 mm (1.25 in)

Operable Rise25,4 mm (1 in)

Have questions?Chat on WhatsApp

About This Product

PJ1P is a mechanical screw planer jack used for leveling machine beds. Sustaining capacity is 2 ton (17.8 kN) and operable rise is 25.4 mm. Extended (max.) height is 95.3 mm and weight is 0.7 kg. Hex across flats is 19.1 mm and across points is 69.9 mm. It is used for leveling planer beds, milling machines and similar machinery, and wherever fine height adjustment is needed. The side locking screw keeps the jack extended.

Features and Benefits

Side locking screw keeps the jack extended and prevents lowering from vibration
Screw operation gives countless adjustments for exact leveling
Ball and socket cap swivels to center load forces
Notched base fastens easily to machine beds
Slotted load cap prevents load slippage in inline applications
CE compliant; design meets or exceeds ANSI/ASME B30.1

Enerpac PJ1P

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E69,9 mm (2.75 in)

Hex Across Flats19,1 mm (0.75 in · 2.38 in)

Country of OriginChina

Dimension F19,1 mm (0.75 in)

Dimension D31,8 mm (1.25 in)

Operable Rise25,4 mm (1 in)

Dimension C60,5 mm (2.38 in)

Capacity17,8 kN (2 ton)

Dimension B95,3 mm (3.75 in)

Sustaining Capacity17,8 kN (2 ton)

Power SourceMechanical

Across Points69,9 mm

Product TypePlaner Jack

Across Points2.75 in

SeriesPJ

Stroke25.4 mm (1 in)

Extended Height95,3 mm (3.75 in)

Model Type2 ton Capacity, 1 in Stroke, 3.75 in Max Height

Dimension A69,9 mm (2.75 in)

Product LineMechanical Tools

Across Flats60,5 mm

Weight0,7 kg (1.5 lbs)

Cap Diameter31,8 mm (1.25 in)

Collapsed Height69,9 mm (2.75 in)

Documents & CAD

Series documents 1· shared by this product series

CertificateEC2B-MECHJACKS_RevH_June2022PDF·137 KB
