How can I get a price quote for Enerpac MM860i?

You can request a fast quote for Enerpac MM860i from Yılsa Engineering. Reference part number YLSYMOTUBRALU6C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MM860i in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MM860i genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MM860i?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

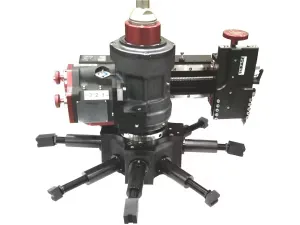

Enerpac MM860i 153-864 mm Flange Facing Machine

Enerpac MM860i; 153-864 mm (6-34") facing diameter, 2.1 hp air-driven internal mount flange facing machine supplied with three base sizes.

EnerpacMFR # MM860iSKU # YLSYMOTUBRALU6C

Grooves Per Inch Out (Gear 2)98

Grooves Per Inch Out (Gear 3)40

Grooves per Inch (Gear 1)154

Weight Excluding Base53 kg (117 lbs)

Max. Base Assembly Weight46 kg (102 lbs)

Min. Swing Diameter670 mm (26.3 in)

Have questions?Chat on WhatsApp

About This Product

The MM860i is an internally mounted, lightweight and robust flange facing machine that uses fixed gears to produce continuous groove (gramophone) finishes to ASME standard. Facing diameter is 153-864 mm (6-34"), clamping range is 150-813 mm and minimum swing diameter is 670 mm (26.3"). The standard drive is pneumatic: 2.1 hp output on 67 cfm of air at 90 psi, with a maximum speed of 28 rpm. Machine weight excluding base is 53 kg (117 lb). It is supplied with 3 different base sizes. It is suited to on-site flange facing and groove machining.

Features and Benefits

Precision construction; 153-864 mm (6-34") facing diameter
Geared continuous groove facing feeds for a gramophone finish (ASME standard)
Quick-set independent base for improved on-site operation
Hardened slide ways to maintain long-term accuracy
Swivel tool post for groove details; reduces need for separate accessories
Supplied with 3 different base sizes

Enerpac MM860i

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Grooves Per Inch Out (Gear 2)98

Grooves Per Inch Out (Gear 3)40

Grooves per Inch (Gear 1)154

Weight Excluding Base53 kg (117 lbs)

Max. Base Assembly Weight46 kg (102 lbs)

Min. Swing Diameter670 mm (26.3 in)

Feed Rate (Gear 3)0.628 mm/rev (0.025 in/rev · 0.021 in/rev)

Feed Rate In (Gear 1)0.139 mm/rev

Clamping Range150 - 813 mm (5.9 - 32 in)

Minimum Facing Diameter153 mm

Feed Rate In (Gear 3)0.528 mm/rev

Feed Rate (Gear 2)0.009 in/rev (0.010 in/rev)

Drive TypeAir

Air Supply Needed (at 6.2 bar)1.9 m³/min (67 cfm)

Product TypeInside Mount Flange Facing Machines

Pneumatic Output Power1.6 kW (2.1 hp)

Feed Rate (Gear 1)0.006 in/rev (0.005 in/rev)

SeriesMM - Flange Facing

Grooves per Inch (Gear 3)48

Grooves per Inch (Gear 1)183

Grooves per Inch (Gear 2)117

Max. Speed28 rpm

Feed Rate In (Gear 2)0.217 mm/rev

Maximum Facing Diameter864 mm

Tool Post Travel100 mm (4 in)

Hydraulic OptionYes

Number of Feed Settings6

Min. Facing Diameter6 in

Product LineMachining Tools

Feed Rate Out (Gear 1)0.165 mm/rev

Feed Rate Out (Gear 2)0.258 mm/rev

Max. Facing Diameter34 in

Documents & CAD

For this product 1

Instruction ManualMM860i Flange Facing Machine (6-34" Internal Flange Facing Machine)"PDF·6.0 MB

Series documents 1· shared by this product series

BrochureMM-FF-Series Flange Facing Machines; EnglishPDF·327 KB
