How can I get a price quote for Enerpac MM610i?

You can request a fast quote for Enerpac MM610i from Yılsa Engineering. Reference part number YLSJR24RZB13ZME. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac MM610i in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac MM610i genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac MM610i?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

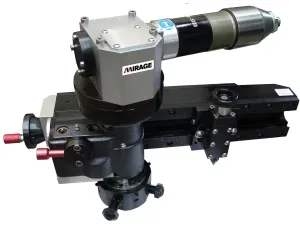

Enerpac MM610i 50-610 mm Flange Facing Machine

Enerpac MM610i; 50-610 mm (2-24") facing diameter, 1.1 hp (0.82 kW) air-driven, lightweight internal mount flange facing machine.

EnerpacMFR # MM610iSKU # YLSJR24RZB13ZME

Weight Excluding Base21 kg (47 lbs)

Max. Base Assembly Weight8 kg (18 lbs)

Min. Swing Diameter530 mm (20.8 in)

4-Jaw Base Clamping Range120 - 560 mm (4.7 - 22 in)

Minimum Facing Diameter50 mm

Grooves per Inch (1 mm Screw, Fine)224

Have questions?Chat on WhatsApp

About This Product

The MM610i is an internally mounted, lightweight and robust flange facing machine that uses fixed gears to produce continuous groove (gramophone) finishes to ASME standard. Facing diameter is 50-610 mm (2-24"), with a minimum swing diameter of 530 mm (20.8"). The standard drive is pneumatic: 1.1 hp (0.82 kW) output on 50 cfm of air at 90 psi, with a maximum speed of 76 rpm. Tool post travel is 40 mm. The 4-jaw base clamping range is 120-560 mm (4.7-22") and machine weight excluding base is 21 kg (47 lb). A hydraulic option is available on request. It is suited to on-site flange facing and groove machining.

Features and Benefits

Precision construction; 50-610 mm (2-24") facing diameter
Geared continuous groove facing feeds for a gramophone finish (ASME standard)
Striker/kick boring feeds to complete a full range of machining applications
Quick-set independent base for improved on-site operation
Hardened slide ways to maintain long-term accuracy
Swivel tool post for groove details; reduces need for separate accessories

Enerpac MM610i

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Weight Excluding Base21 kg (47 lbs)

Max. Base Assembly Weight8 kg (18 lbs)

Min. Swing Diameter530 mm (20.8 in)

4-Jaw Base Clamping Range120 - 560 mm (4.7 - 22 in)

Minimum Facing Diameter50 mm

Grooves per Inch (1 mm Screw, Fine)224

Grooves per Inch 1.75 mm Screw (Fine)128

Drive TypeAir

Air Supply Needed (at 6.2 bar)1.42 m³/min (50 cfm)

Product TypeInside Mount Flange Facing Machines

Pneumatic Output Power0.82 kW (1.1 hp)

Feed Rate (125 mm Screw, Coarse)0.568 mm/rev (0.022 in/rev)

Feed Rate (1.75 mm Screw, Coarse)0.031 in/rev

Feed Rate (125 mm Screw, Fine)0.142 mm/rev (0.006 in/rev)

SeriesMM - Flange Facing

Feed Rate 1 mm Screw (Fine)0.004 in/rev

Feed Rate (1 mm Screw, Coarse)0.455 mm/rev (0.018 in/rev)

Max. Speed76 rpm

Feed Rate (1 mm Screw, Fine)0.114 mm/rev

Grooves per Inch (125 mm Screw, Fine)179

Maximum Facing Diameter610 mm

Tool Post Travel40 mm (1.6 in)

Grooves per Inch (125 mm Screw, Coarse)45

Feed Rate (175 mm Screw, Fine)0.199 mm/rev

Feed Rate (1.75 mm Screw, Fine)0.008 in/rev

Hydraulic OptionOn request

Number of Feed Settings2

Feed Rate (175 mm Screw, Coarse)0.795 mm/rev

Min. Facing Diameter2 in

Product LineMachining Tools

Grooves per Inch 1 mm Screw (Coarse)56

Small 3-Jaw Base Clamping Range50 - 122 mm

Grooves per Inch 1.75 mm Screw (Coarse)32

Max. Facing Diameter24 in

Small 3-Jaw Base Clamping Range2 - 4.8 in

Documents & CAD

For this product 1

Instruction ManualMM610i Flange Facing Machine (2-24" External Flange Facing Machine)PDF·9.0 MB

Series documents 1· shared by this product series

BrochureMM-FF-Series Flange Facing Machines; EnglishPDF·327 KB
