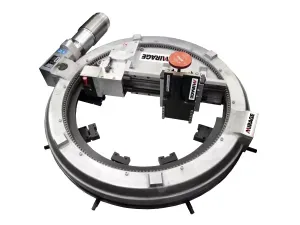

Enerpac MM600E 0-610 mm Flange Facing Machine
Enerpac MM600E; 0-610 mm (0-24") facing diameter, 310-610 mm clamping range, air-driven external mount flange facing machine.
Clamping Range310 - 610 mm (12.25 - 24 in)
Minimum Facing Diameter0 mm
Drive TypeAir
Air Supply Needed (at 6.2 bar)1.42 m³/min (50 cfm)
Product TypeOutside Mount Flange Facing Machines
Pneumatic Output Power3 kW (4 hp)
About This Product
The MM600E is a robust externally mounted flange facing machine that uses fixed gears to produce continuous groove (gramophone) finishes to ASME standard. It offers a 0-610 mm (0-24") facing diameter and a 310-610 mm (12.25-24") clamping range.
The standard drive is pneumatic: it needs 50 cfm (1.42 m³/min) of air at 90 psi, delivers 3 kW (4 hp) and runs at up to 18 rpm. Tool post travel is 102 mm (4") and machine weight is 143 kg (315 lb).
A preloaded cross roller drive, hardened slide ways and a swivel tool post support precise, repeatable flange facing and groove machining.
Features and Benefits
- Precision construction with preloaded cross roller drive for robust, repeatable machining
- Geared continuous groove facing feeds for a gramophone finish (ASME standard)
- Additional leadscrew available for alternative finish
- Hardened slide ways to maintain long-term accuracy
- Quick-set integrated clamping jaws
- Swivel tool post for groove machining and auto-axial boring feed
Enerpac MM600E
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Clamping Range310 - 610 mm (12.25 - 24 in)
Minimum Facing Diameter0 mm
Drive TypeAir
Air Supply Needed (at 6.2 bar)1.42 m³/min (50 cfm)
Product TypeOutside Mount Flange Facing Machines
Pneumatic Output Power3 kW (4 hp)
SeriesMME
Max. Speed18 rpm
Maximum Facing Diameter610 mm
Tool Post Travel102 mm (4 in)
Number of Feed Settings2 (in & out)
Min. Facing Diameter0 in
Product LineMachining Tools
Weight143 kg (315 lbs)
Max. Facing Diameter24 in
