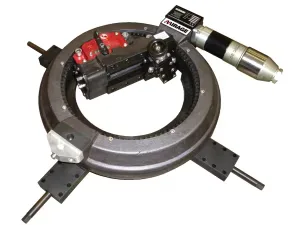

Enerpac MM300E 305 mm Flange Facing Machine
Enerpac MM300E; 0–305 mm facing diameter, 50–305 mm clamping range, air-driven, externally mounted flange facing machine.
Clamping Range50 - 305 mm (2 - 12 in)
Minimum Facing Diameter0 mm
Drive TypeAir
Air Supply Needed (at 6.2 bar)1.42 m³/min (50 cfm)
Product TypeOutside Mount Flange Facing Machines
Pneumatic Output Power0.8 kW (1.1 hp)
About This Product
The MM300E is a robust externally mounted flange facing machine from the MME series. It uses fixed gears to produce continuous groove gramophone finishes to ASME standard.
It offers a 0–305 mm (0–12 in) facing diameter and a 50–305 mm (2–12 in) clamping range. The pneumatic drive delivers 1.1 hp (0.8 kW) with a maximum speed of 33 rpm and needs about 1.42 m³/min (50 cfm) of air at 6.2 bar (90 psi). The machine weighs 43 kg.
It is used for on-site machining of flange sealing faces during maintenance, repair and commissioning work.
Features and Benefits
- Precision construction
- Preloaded cross roller drive ensures robust, repeatable machining
- Geared continuous groove facing feeds for a gramophone finish (ASME standard)
- Two leadscrews as standard; an extra two are available for alternative finishes
- Quick-set integrated clamping jaws
- Swivel tool post
Enerpac MM300E
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Clamping Range50 - 305 mm (2 - 12 in)
Minimum Facing Diameter0 mm
Drive TypeAir
Air Supply Needed (at 6.2 bar)1.42 m³/min (50 cfm)
Product TypeOutside Mount Flange Facing Machines
Pneumatic Output Power0.8 kW (1.1 hp)
SeriesMME
Max. Speed33 rpm
Maximum Facing Diameter305 mm
Number of Feed Settings2 (in & out)
Min. Facing Diameter0 in
Product LineMachining Tools
Weight43 kg (95 lbs)
Max. Facing Diameter12 in
