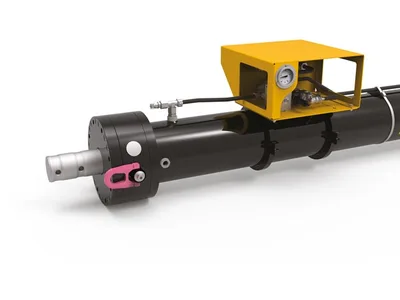

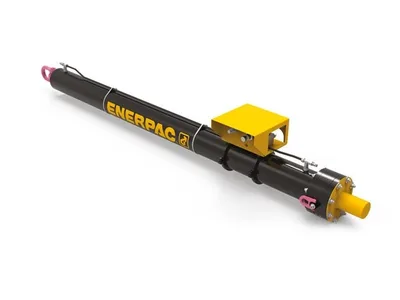

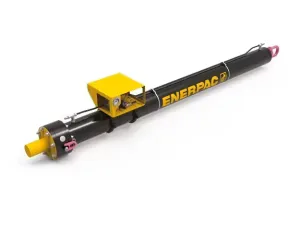

Enerpac LSA2236-H 559-914 mm Line Stop Actuator

Enerpac LSA2236-H; 559–914 mm (22–36 in) plugging head range, 344 kN extend / 277 kN retract capacity at 70 bar, 3556 mm stroke, hydraulic line stop actuator.

EnerpacMFR # LSA2236-HSKU # YLSU7BMFBEKDG30

Dimension G280 mm (11.0 in)

Retract Capacity (1015 psi)31.2 ton

Retract Capacity (70 bar)277 kN

Extend Capacity at 70 bar344 kN

Dimension F101,6 mm (4.0 in)

Dimension D394 mm (15.5 in)

Have questions?Chat on WhatsApp

About This Product

LSA2236-H is a hydraulic line stop actuator in the Enerpac Hot Tapping and Line Stopping series. It is designed for plugging head sizes of 559–914 mm (22–36 in) and provides 344 kN extend and 277 kN retract capacity at 70 bar with a 3556 mm (140 in) stroke. Maximum working pressure is 102 bar and maximum continuous operating temperature is 83 °C. It weighs 740 kg and requires a variable-flow hydraulic supply. It allows a section of pressurized pipeline to be temporarily isolated for repair, maintenance and modification, avoiding service interruption and costly shutdowns.

Features and Benefits

Maximum working pressure of 102 bar (1480 psi) at 83 °C
Failsafe mechanical lock prevents control rod movement
Anti-rotation feature ensures aligned plugging head deployment
Hydraulic control at the working end of the cylinder for ease of use
Visible control bar depth control
Supplied with hydraulic valve and pressure relief, certified lifting points, ISO16028 quick connections, flange connections and pressure certificate

Enerpac LSA2236-H

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

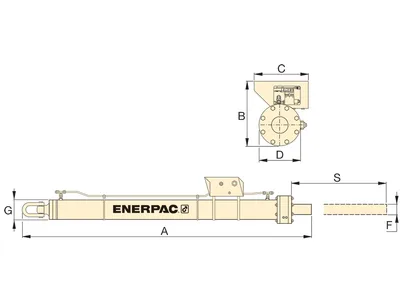

Dimension G280 mm (11.0 in)

Retract Capacity (1015 psi)31.2 ton

Retract Capacity (70 bar)277 kN

Extend Capacity at 70 bar344 kN

Dimension F101,6 mm (4.0 in)

Dimension D394 mm (15.5 in)

Standard Certified Pressure102 bar (1480 psi)

Stroke3556 mm (140 in)

Dimension S3556 mm (140 in)

Plugging Head Size (Min-Max)22 - 36 in

Dimension C520 mm (20.5 in)

Maximum Operating Pressure102 bar (1480 psi)

Min. Diameter559 mm (22 in)

Drive Power TypeHydraulic

Dimension B561 mm (22.0 in)

Max. Diameter914 mm

Plugging Head Size Min-Max559 - 914 mm

Max. Continuous Operating Temperature83 °C (181 °F)

Dimension A4811 mm (189.4 in)

Extend Capacity (1015 psi)38.7 ton

Product LineMachining Tools

Hydraulic Supply Needed (70 bar)Variable Flow

Weight740 kg (1631 lbs)

Maximum Diameter36 in

Hydraulic Oil Flow RequiredVariable Flow

Product TypeLine Stopping Actuators

Hydraulic Oil Flow Required (70 bar)Variable Flow

SeriesLSA

Documents & CAD

Series documents 1· shared by this product series

BrochureLSA-Series Line Stop Actuators; EnglishPDF·134 KB
