How can I get a price quote for Enerpac JH506?

You can request a fast quote for Enerpac JH506 from Yılsa Engineering. Reference part number CEY-937FC77C3C53. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac JH506 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac JH506 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac JH506?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

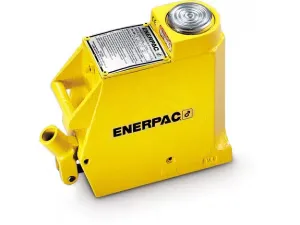

Enerpac JH506 50 Ton Steel Jack

Enerpac JH506; 50 ton (445 kN) capacity, 154 mm stroke, 700 bar maximum operating pressure, 2-speed hydraulic steel jack.

EnerpacMFR # JH506SKU # CEY-937FC77C3C53

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Capacity445 kN (50 ton)

ApplicationsLift

Product TypeSteel Jack

SeriesJH

Have questions?Chat on WhatsApp

About This Product

JH506 is a 50 ton (445 kN) hydraulic steel jack from the Enerpac JH series. It offers a 154 mm (6.09 in) stroke, 260 mm collapsed height and 414 mm extended height. Maximum operating pressure is 700 bar (10,000 psi) and plunger diameter is 88.9 mm. It has a 2-speed pump design. The bottom plate measures 127 x 258 mm and the jack weighs 40.8 kg. An internal relief valve prevents overloading, the plunger is chrome plated and a pumping handle is included. It is used for lifting in industrial plants, maintenance and assembly work. Machined flat front and bottom surfaces allow flush positioning in tight corners.

Features and Benefits

50 ton (445 kN) capacity, 154 mm stroke
2-speed pump design
Internal relief valve prevents overloading
Machined flat front and bottom surfaces for flush alignment in tight corners
Chrome plated plunger
Pumping handle included

Enerpac JH506

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Capacity445 kN (50 ton)

ApplicationsLift

Product TypeSteel Jack

SeriesJH

Bottom Plate Dimensions (W x L)127 x 258 mm (5.00 x 10.19 in)

Stroke154 mm (6.09 in)

Extended Height414 mm (16.34 in)

Plunger Diameter88,9 mm (3.5 in)

Jack Effective Area62,1 cm² (9.62 in²)

Product LineIndustrial Tools

Weight40,8 kg (90 lbs)

Collapsed Height260 mm (10.25 in)

Pump Speed2-Speed

Documents & CAD

For this product 2

Instruction ManualJack - SteelPDF·2.9 MB 4 languages· in one file

Repair Parts SheetHydraulic, Steel, Hand JackPDF·119 KB·English

Series documents 1· shared by this product series

BrochureJH-JHA-Series Aluminum Steel Jacks; EnglishPDF·107 KB
