How can I get a price quote for Enerpac JH1006?

You can request a fast quote for Enerpac JH1006 from Yılsa Engineering. Reference part number CEY-543811EC7934. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac JH1006 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac JH1006 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac JH1006?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

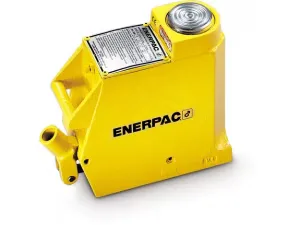

Enerpac JH1006 100 ton Hydraulic Steel Jack

Enerpac JH1006; 100 ton (890 kN) capacity, 153 mm (6.06 in) stroke, 700 bar (10,000 psi), 2-speed hydraulic steel jack.

EnerpacMFR # JH1006SKU # CEY-543811EC7934

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Capacity890 kN (100 ton)

ApplicationsLift

Product TypeSteel Jack

SeriesJH

Have questions?Chat on WhatsApp

About This Product

JH1006 is a JH series hydraulic steel jack. It has a 100 ton (890 kN) capacity, a 153 mm (6.06 in) stroke and a maximum operating pressure of 700 bar (10,000 psi), with a 2-speed pump. Collapsed height is 287 mm (11.31 in), extended height is 440 mm (17.37 in), plunger diameter is 130.1 mm and effective area is 133.1 cm². The bottom plate measures 181 x 328 mm and weight is 74.4 kg. Country of origin is the United States. An internal relief valve prevents overloading. Machined flat front and bottom surfaces permit flush alignment in tight corners. All models include a pumping handle. It is used in industrial applications where heavy loads must be lifted.

Features and Benefits

Internal relief valve prevents overloading
Machined flat front and bottom surfaces permit flush alignment in tight corners
Pumping handle included with all models
Chrome plated plungers
100 ton (890 kN) capacity, 700 bar (10,000 psi) operating pressure
2-speed pump design

Enerpac JH1006

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Capacity890 kN (100 ton)

ApplicationsLift

Product TypeSteel Jack

SeriesJH

Bottom Plate Dimensions (W x L)181 x 328 mm (7.13 x 12.94 in)

Stroke153 mm (6.06 in)

Extended Height440 mm (17.37 in)

Plunger Diameter130,1 mm (5.12 in)

Jack Effective Area133,1 cm² (20.63 in²)

Product LineIndustrial Tools

Weight74,4 kg (184 lbs)

Collapsed Height287 mm (11.31 in)

Pump Speed2-Speed

Documents & CAD

For this product 3

Instruction ManualJack - SteelPDF·2.9 MB 4 languages· in one file

Repair Parts SheetHydraulic, Steel, Hand JackPDF·119 KB·English

BrochureJH-JHA-Series Aluminum Steel Jacks; EnglishPDF·107 KB
