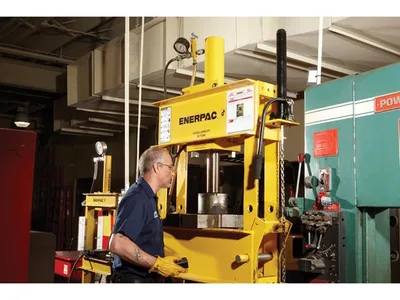

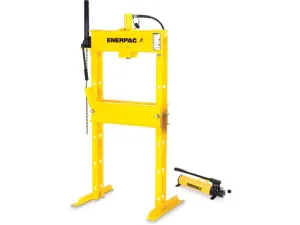

Enerpac IPH3080 30 Ton H-Frame Hydraulic Press

Enerpac IPH3080; 30 ton capacity, 355 mm stroke, manual H-frame hydraulic press with RR3014 double-acting cylinder and P84 hand pump.

EnerpacMFR # IPH3080SKU # CEY-7B4B2D993602

Max. Vertical Daylight1384 mm (54.5 in)

Maximum Bed Width736 mm

Power Source TypeManual

Valve Power SourceManual

Cylinder TypeDouble-Acting, Hydraulic Return

Cylinder Stroke355 mm (14 in)

Have questions?Chat on WhatsApp

About This Product

IPH3080 is a 30 ton H-frame hydraulic press from the IP series. It is specified with an RR3014 double-acting, hydraulic-return cylinder and a P84 hand pump; the power source and valve are manual. Cylinder stroke is 355 mm, maximum vertical daylight is 1384 mm, maximum bed width is 736 mm and weight is approximately 301.2 kg. The frame is of welded construction. It is used in workshop and maintenance applications such as bearing and bush removal and installation, straightening and press-fit work.

Features and Benefits

Quality welded frame for maximum strength and long life
Hydra-Lift™ bed for effortless adjustment of vertical daylight
Standard roller head design for side-to-side movement and locking of the cylinder (manual on the 30 ton model)
Complete package matched with pump, cylinder, hoses and gauge
Hydraulic return with double-acting cylinder

Enerpac IPH3080

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Max. Vertical Daylight1384 mm (54.5 in)

Maximum Bed Width736 mm

Power Source TypeManual

Valve Power SourceManual

Cylinder TypeDouble-Acting, Hydraulic Return

Cylinder Stroke355 mm (14 in)

Pressing Speed{0,7} mm/s ({34} sec/in)

Weight301,2 kg (664 lbs)

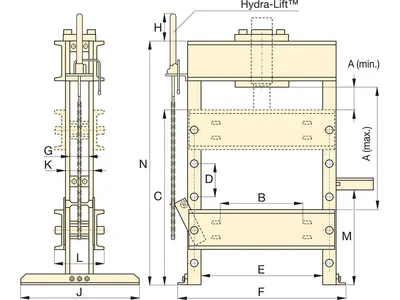

Dimension N1930 mm (76 in)

Dimension G101 mm (4 in)

Dimension E736 mm (29 in)

Country of OriginUnited States

Length1028 mm (40.5 in)

Dimension F1028 mm (40.5 in)

Dimension D301 mm (11.88 in)

Max. Operating Pressure10,000 psi

Dimension C1447 mm (57 in)

Maximum Operating Pressure700 bar (10,000 psi)

Capacity294 kN (30 ton)

Dimension BN/A mm

Dimension K133 mm (5.25 in)

Dimension A (Max.)1391 mm (54.5 in)

Dimension J762 mm (30 in)

Dimension H336 mm (13.25 in)

Max. Bed Width29 in

Product TypeH-Frame Press

Dimension L271 mm (10.69 in)

Width762 mm (30 in)

Dimension M673 mm (26.5 in)

SeriesIP

Dimension A (Min.)177 mm (7 in)

Rapid Advance Speed{3,6} mm/s ({7} sec/in)

Press Capacity30 ton

Product LineIndustrial Tools

Height2266.95 mm (89.25 in)

Set IncludesRR3014,P84,GF835P,HC9306,GA3

Documents & CAD

Series documents 3· shared by this product series

Repair Parts SheetPump - HandPDF·221 KB 2 languages· in one file

2D DrawingIPH3080 drawingPDF·1.2 MB

BrochureIP-Series_H-Frame_Presses_EN-AUPDF·328 KB
