How can I get a price quote for Enerpac RR3014?

You can request a fast quote for Enerpac RR3014 from Yılsa Engineering. Reference part number CEY-8EF3B033DA4B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RR3014 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RR3014 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RR3014?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

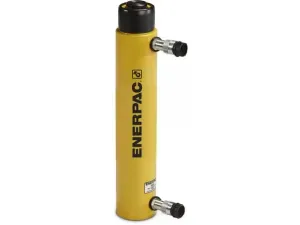

Enerpac RR3014 32.5 Ton Hydraulic Cylinder

Enerpac RR3014; 32.5 ton (30 ton class) capacity, 368 mm (14.5 in) stroke, 700 bar (10,000 psi), double-acting general purpose hydraulic cylinder.

EnerpacMFR # RR3014SKU # CEY-8EF3B033DA4B

Oil Capacity (Advance)1549 cm³ (92.7 in³)

Base Mounting Holes Thread Depth Z– mm

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)703 cm³ (43 in³)

ApplicationsLift, Lower, Push, Pull

Base Mounting Holes Thread V–

Have questions?Chat on WhatsApp

About This Product

RR3014 is a double-acting, general purpose hydraulic cylinder from the Enerpac RR series. It offers 32.5 ton advance capacity, 6 ton retract capacity and a 368 mm (14.5 in) stroke. Maximum operating pressure is 700 bar (10,000 psi). Bore diameter is 73.2 mm, outside diameter 101 mm and weight about 29 kg (64 lb). Oil capacity is 1549 cm³ on advance and 703 cm³ on retract. The plunger internal thread is 1 1/2" - 16 and the saddle diameter is 50 mm; the optional tilt saddle allows 5 degrees of tilt. The surface is painted. It is used for lifting, lowering, pushing and pulling. It suits high-cycle work in construction and manufacturing.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
Collar and plunger threads for easy fixturing
Baked enamel finish for increased corrosion resistance
Removable hardened saddles protect the plunger during lifting and pressing
Built-in safety valve prevents accidental over-pressurization
CR400 coupler included

Enerpac RR3014

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)1549 cm³ (92.7 in³)

Base Mounting Holes Thread Depth Z– mm

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)703 cm³ (43 in³)

ApplicationsLift, Lower, Push, Pull

Base Mounting Holes Thread V–

Maximum Cylinder Capacity (Advance)295 kN (32.5 ton)

Outside Diameter D101 mm (4 in)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)73,2 mm (2.88 in)

Product TypeGeneral Purpose Cylinder

SeriesRR

Plunger Internal Thread1 1/2" - 16

Base to Advance Port H39 mm (1.56 in)

Model Type32.5 Ton Capacity, 14.5 in. Stroke

Max. Cylinder Retract Capacity6 ton

Optional Tilt Saddle Diameter (J1)2 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Weight29 kg (64 lbs)

Top to Retract Port (I)81 mm (3.19 in)

Plunger Internal Thread O1 1/2"- 16

Saddle Diameter J50 mm (1.97 in)

Surface TreatmentPaint

Cylinder Class30 ton

Country of OriginUnited States

Collar Thread Length (X)49 mm (1.94 in)

Saddle Diameter J150 mm

Extended Height (B)917 mm (36.13 in)

Cylinder Effective Area (Advance)42,1 cm² (6.51 in²)

Cylinder Effective Area (Retract)19,1 cm²

Plunger TypeSolid

Cylinder Effective Area (Retract)3 in²

Collapsed Height (A)549 mm (21.63 in)

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)25 mm (0.98 in)

Collar Thread (W)35/16”- 12

Stroke368 mm (14.5 in)

Saddle Protrusion from Plunger K10 mm (0.41 in)

Saddle Protrusion from Plunger K110 mm

Plunger Thread Length (P)25 mm (1 in)

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F54,1 mm (2.13 in)

Base Mounting Holes Bolt Circle U– mm

Documents & CAD

For this product 2

Repair Parts SheetRR308 & RR3014 Hydraulic CylindersPDF·118 KB 4 languages· in one file

2D DrawingRR3014 drawingPDF·1.1 MB

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinder - 30 TonPDF·103 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·155 KB·English

BrochureRR-Series Cylinders Double-Acting Long Stroke; EnglishPDF·409 KB
