How can I get a price quote for Enerpac HC9306?

You can request a fast quote for Enerpac HC9306 from Yılsa Engineering. Reference part number CEY-8EF3B034655D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HC9306 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HC9306 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HC9306?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

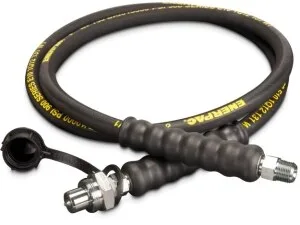

Enerpac HC9306 1.8 m Hydraulic Hose

Enerpac HC9306; 6 ft (≈1.8 m), 9.7 mm ID, 700 bar (10,000 psi) heavy-duty rubber high pressure hydraulic hose with 3/8" NPTF and CH604 ends.

EnerpacMFR # HC9306SKU # CEY-8EF3B034655D

Country of OriginUnited States

End Two CouplerCH604

Length6 ft

Internal Diameter9,7 mm (0.38 in)

Product TypeHeavy-duty Rubber Hose

Maximum Operating Pressure10,000 psi

Have questions?Chat on WhatsApp

About This Product

HC9306 is a 6 ft (≈1.8 m) heavy-duty rubber hydraulic hose from the Enerpac H900 series with a 9.7 mm (0.38 in) internal diameter. Maximum operating pressure is 700 bar (10,000 psi), and the hose has two layers of steel wire braid under a rubber cover. One end is 3/8" NPTF and the other is a CH604 coupler. Oil capacity is 8.16 in³ (≈134 cm³) and weight is about 2.2 kg. The hose is designed to comply with the Material Handling Institute IJ-100 hose specification. Its flexibility and low memory suit repeated heavy-duty high pressure hydraulic applications.

Features and Benefits

Maximum working pressure of 700 bar (10,000 psi)
Two layers of steel wire braid with rubber cover
Crimped-on rubber strain relief for improved life and durability
Designed to comply with Material Handling Institute IJ-100 hose specification
Flexible construction with low memory
3/8" NPTF and CH604 end connections

Enerpac HC9306

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

End Two CouplerCH604

Length6 ft

Internal Diameter9,7 mm (0.38 in)

Product TypeHeavy-duty Rubber Hose

Maximum Operating Pressure10,000 psi

SeriesH900

Oil Capacity8.16 in³

Model Type6 ft., 0.38 in Int. Diam., 3/8" NPTF, CH604 Ends

Product LineIndustrial Tools

End One Coupler3/8" NPTF

Weight4.9 lbs

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic Hose / FittingsPDF·386 KB

Instruction ManualHose, HydraulicPDF·4.1 MB 4 languages· in one file

BrochureH700-H900-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureHigh_Pressure_Hydraulic_Hoses_EN-SGPDF·279 KB·English

Alternative Names & Search Terms

HC9306HC-9306HC 9306Enerpac HC9306Enerpac HC-9306HC9306 hoseHC9306 hydraulic hoseEnerpac H900 seriesEnerpac 900 series hoseH900 series hydraulic hose6 ft hydraulic hose1.8 m high pressure hydraulic hose9.7 mm ID hydraulic hose700 bar hydraulic hoseCH604 end hydraulic hose3/8 NPTF hydraulic hosesteel wire braided rubber hydraulic hose10,000 psi high pressure hoseheavy-duty rubber hose
