Enerpac HCR6002 673 ton Hydraulic Cylinder

Enerpac HCR6002; 673 ton capacity, 50 mm (1.97 in) stroke, up to 700 bar working pressure, double-acting high tonnage hydraulic cylinder.

EnerpacMFR # HCR6002SKU # YLS38Y71505O15R

Cylinder Class600 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)352 mm (13.86 in)

Outside Diameter D430 mm (16.93 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U370 mm (14.57 in)

Have questions?Chat on WhatsApp

About This Product

HCR6002 is a double-acting model in the HCR Series of high tonnage hydraulic cylinders. It has a capacity of 673 tons (600 ton class) and a 50 mm (1.97 in) stroke. The plunger is driven hydraulically on both advance and retract. Collapsed height is 352 mm, outside diameter is 430 mm, the base mounting bolt circle is 370 mm and weight is 379 kg. The body and plunger have a nitrided surface. Maximum working pressure is up to 700 bar (10,000 psi). It is used for lifting, lowering and pushing applications and suits heavy loads where a low collapsed height is needed. It complies with ASME B30.1.

Features and Benefits

Double-acting design for fast and controlled advance and retract
Nitrocarburized surface resists side-loading and cyclic wear
10% side-load resistance over the full stroke
Upper and lower replaceable bearings support the plunger throughout the stroke
Certified lifting eyes and base mounting holes
700 bar (10,000 psi) maximum working pressure; complies with ASME B30.1

Enerpac HCR6002

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

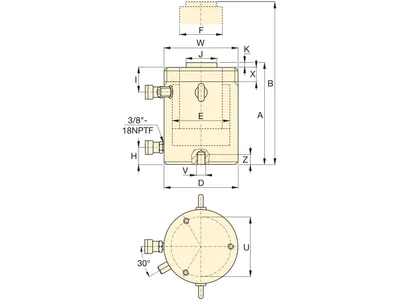

Specifications

Cylinder Class600 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)352 mm (13.86 in)

Outside Diameter D430 mm (16.93 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U370 mm (14.57 in)

Surface TreatmentNitride

Weight379 kg (836 lbs)

Oil Capacity (Advance)4276 cm³ (260.97 in³)

Base Mounting Holes Thread Depth Z36 mm (1.42 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)1414 cm³ (86.27 in³)

ApplicationsLift, Lower, Push

Base Mounting Holes Thread VM24 x 3

Maximum Cylinder Capacity (Advance)5987 kN (673 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)330 mm (12.99 in)

Product TypeHigh Tonnage Cylinder

SeriesHCR

Base to Advance Port H85 mm (3.35 in)

Optional Tilt Saddle Diameter (J1)9.72 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)405 mm (15.94 in)

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)121 mm (4.76 in)

Saddle Diameter J194 mm (7.64 in)

Country of OriginNetherlands

Saddle Diameter J1250 mm

Extended Height (B)402 mm (15.83 in)

Cylinder Effective Area (Advance)855,3 cm² (132.57 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)53 mm (2.09 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K4 mm (0.16 in)

Saddle Protrusion from Plunger K14 mm

Plunger Diameter F270 mm (10.63 in)

Documents & CAD

Series documents 2· shared by this product series

Repair Parts SheetHigh Tonnage Hydraulic Cylinders, HCR SeriesPDF·6.8 MB·English

BrochureHCR-Series High-Tonnage Cylinders; EnglishPDF·243 KB

CAD Files 3

3D Model
