How can I get a price quote for Enerpac HC9220?

You can request a fast quote for Enerpac HC9220 from Yılsa Engineering. Reference part number YLSSGZ022JYNHH1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HC9220 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HC9220 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HC9220?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

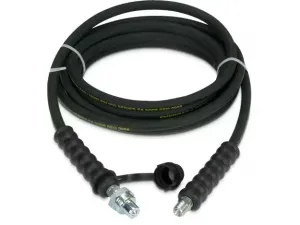

Enerpac HC9220 6 m Hydraulic Hose

Enerpac HC9220; 6 m (20 ft) length, 6.4 mm (0.25 in) inside diameter, 689 bar (10,000 psi) working pressure, heavy-duty rubber hydraulic hose with 3/8 NPTF and CH604 ends.

EnerpacMFR # HC9220SKU # YLSSGZ022JYNHH1

Country of OriginUnited States

End Two CouplerCH604

Length20 ft

Internal Diameter6,4 mm (0.25 in)

Product TypeHeavy-duty Rubber Hose

Maximum Operating Pressure10,000 psi

Have questions?Chat on WhatsApp

About This Product

HC9220 is a heavy-duty rubber high-pressure hydraulic hose from the H900 series. It is 6 m (20 ft) long with a 6.4 mm (0.25 in) inside diameter and a maximum working pressure of 689 bar (10,000 psi). One end is 3/8 NPTF and the other is CH604. It has two layers of steel wire braid under a rubber cover and is designed to comply with the Material Handling Institute IJ-100 hose specification. Hose oil capacity is about 193 cm³ (11.78 in³) and weight is about 3.8 kg (8.3 lb). Its flexible, low-memory construction suits repeated heavy-duty high-pressure applications and long hose runs.

Features and Benefits

Maximum working pressure 689 bar (10,000 psi)
6 m (20 ft) length; 3/8 NPTF and CH604 ends
Two layers of steel wire braid with rubber cover
Crimped-on rubber strain relief for longer life and durability
Designed to comply with Material Handling Institute IJ-100 hose specification
Flexible with little memory; well suited to long hose runs

Enerpac HC9220

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

End Two CouplerCH604

Length20 ft

Internal Diameter6,4 mm (0.25 in)

Product TypeHeavy-duty Rubber Hose

Maximum Operating Pressure10,000 psi

SeriesH900

Oil Capacity11.78 in³

Model Type20 ft., 0.25 in Int. Diam., 3/8" NPTF, CH604 Ends

Product LineIndustrial Tools

End One Coupler3/8" NPTF

Weight8.3 lbs

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic Hose / FittingsPDF·386 KB

Instruction ManualHose, HydraulicPDF·4.1 MB 4 languages· in one file

BrochureH700-H900-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureHigh_Pressure_Hydraulic_Hoses_EN-SGPDF·279 KB·English

Alternative Names & Search Terms

HC9220HC-9220HC 9220Enerpac HC9220Enerpac HC-9220HC9220 hoseEnerpac H900 seriesH900 series hydraulic hose6 m hydraulic hose20 ft hydraulic hose10000 psi hydraulic hose689 bar high pressure hose6.4 mm inside diameter hydraulic hose1/4 inch hydraulic hosesteel wire braided rubber hose3/8 NPTF CH604 hoseCH604 end hydraulic hoseEnerpac heavy-duty rubber hose
