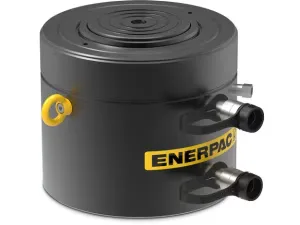

Enerpac HCR2502 286 ton Hydraulic Cylinder

Enerpac HCR2502; 286 ton capacity, 50 mm (1.97 in) stroke, 700 bar working pressure double-acting high tonnage hydraulic cylinder.

EnerpacMFR # HCR2502SKU # CEY-55221B12DAA0

Cylinder Class250 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)241 mm (9.49 in)

Outside Diameter D280 mm (11.02 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U245 mm (9.65 in)

Have questions?Chat on WhatsApp

About This Product

HCR2502 is a high tonnage hydraulic cylinder from the Enerpac HCR series. It offers 286 ton capacity (250 US ton class) and a 50 mm stroke. The double-acting design drives the plunger hydraulically in both directions. Collapsed height is 241 mm, outside diameter 280 mm and weight 107 kg. The base mounting bolt circle is 245 mm and the collar thread is M280 x 3. A nitrided surface treatment is applied. Maximum working pressure is 700 bar (10,000 psi) and the cylinder complies with ASME B30.1. It is used for lifting, lowering and pushing where a low collapsed height is needed, in large-scale construction and heavy load applications.

Features and Benefits

Double-acting design for fast, controlled plunger advance and retract
Nitrocarburized surface resists side-loading and cyclic wear
10% side-load resistance over the full stroke
Replaceable upper and lower bearings; weather protected inside and out
Certified lifting eyes, base mounting holes and collar thread (M280 x 3)
700 bar (10,000 psi) maximum working pressure; ASME B30.1 compliant

Enerpac HCR2502

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class250 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)241 mm (9.49 in)

Outside Diameter D280 mm (11.02 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U245 mm (9.65 in)

Collar Thread (W)M280 x 3

Surface TreatmentNitride

Weight107 kg (236 lbs)

Oil Capacity (Advance)1815 cm³ (110.77 in³)

Base Mounting Holes Thread Depth Z22 mm (0.87 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)680 cm³ (41.52 in³)

ApplicationsLift, Lower, Push

Base Mounting Holes Thread VM12 x 1,75

Maximum Cylinder Capacity (Advance)2541 kN (286 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)215 mm (8.46 in)

Product TypeHigh Tonnage Cylinder

SeriesHCR

Base to Advance Port H53 mm (2.09 in)

Optional Tilt Saddle Diameter (J1)6.89 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)280 mm (11.02 in)

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)79 mm (3.11 in)

Saddle Diameter J140 mm (5.51 in)

Country of OriginSpain

Collar Thread Length (X)64 mm (2.52 in)

Saddle Diameter J1175 mm

Extended Height (B)291 mm (11.46 in)

Cylinder Effective Area (Advance)363,1 cm² (56.27 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)39 mm (1.54 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K4 mm (0.16 in)

Saddle Protrusion from Plunger K14 mm

Plunger Diameter F170 mm (6.69 in)
