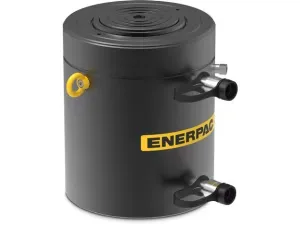

Enerpac HCR2506 286 ton Hydraulic Cylinder

Enerpac HCR2506; 286 ton capacity, 150 mm stroke, up to 700 bar working pressure, double-acting high tonnage hydraulic cylinder.

EnerpacMFR # HCR2506SKU # YLS7KY1SZ27IOP3

Cylinder Class250 ton

Stroke150 mm (5.91 in)

Collapsed Height (A)341 mm (13.43 in)

Outside Diameter D280 mm (11.02 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U245 mm (9.65 in)

Have questions?Chat on WhatsApp

About This Product

The HCR2506 is a double-acting high tonnage hydraulic cylinder from the HCR series. Capacity is 286 ton (250 ton class), stroke is 150 mm (5.91 in), collapsed height is 341 mm, outside diameter is 280 mm and weight is 146 kg. The body and plunger have a nitrocarburized surface treatment. The base mounting holes are on a 245 mm bolt circle, and an M280 x 3 collar thread is included. Maximum working pressure for the series is 700 bar (10,000 psi). It is used for lifting, lowering and pushing in large-scale construction and heavy load projects. The double-acting design provides hydraulic plunger return.

Features and Benefits

Double-acting for fast, controlled advance and retract
Nitrocarburized surface resists side-loading and cyclic wear
10% side-load resistance over the full stroke
Replaceable upper and lower bearings support the plunger throughout the stroke
Certified lifting eyes, base mounting holes and M280 x 3 collar thread
Up to 700 bar working pressure; complies to ASME B30.1

Enerpac HCR2506

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class250 ton

Stroke150 mm (5.91 in)

Collapsed Height (A)341 mm (13.43 in)

Outside Diameter D280 mm (11.02 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U245 mm (9.65 in)

Collar Thread (W)M280 x 3

Surface TreatmentNitride

Weight146 kg (322 lbs)

Oil Capacity (Advance)5446 cm³ (332.32 in³)

Base Mounting Holes Thread Depth Z22 mm (0.87 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)2041 cm³ (124.55 in³)

ApplicationsLift, Lower, Push

Base Mounting Holes Thread VM12 x 1,75

Maximum Cylinder Capacity (Advance)2541 kN (286 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)215 mm (8.46 in)

Product TypeHigh Tonnage Cylinder

SeriesHCR

Base to Advance Port H53 mm (2.09 in)

Optional Tilt Saddle Diameter (J1)6.89 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)380 mm (14.96 in)

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)79 mm (3.11 in)

Saddle Diameter J140 mm (5.51 in)

Country of OriginSpain

Collar Thread Length (X)64 mm (2.52 in)

Saddle Diameter J1175 mm

Extended Height (B)491 mm (19.33 in)

Cylinder Effective Area (Advance)363,1 cm² (56.27 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)39 mm (1.54 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K4 mm (0.16 in)

Saddle Protrusion from Plunger K14 mm

Plunger Diameter F170 mm (6.69 in)
