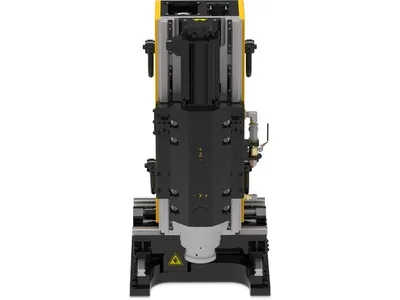

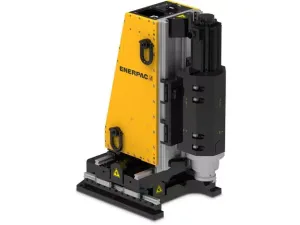

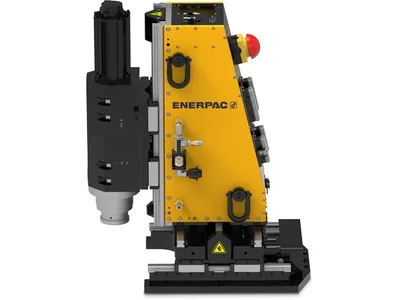

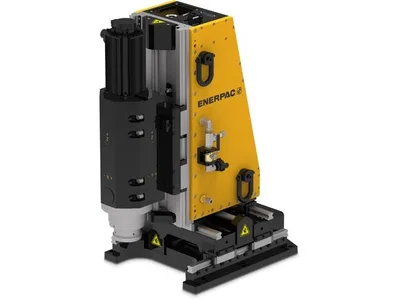

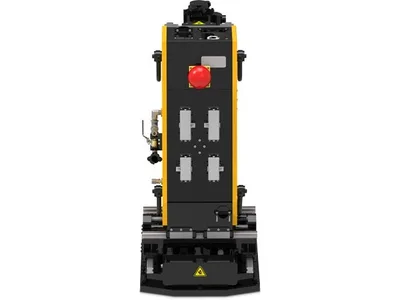

Enerpac GENISYS4 279 mm CNC Milling Machine
Enerpac GENISYS4; 22.2–279.4 mm hole diameter, 384 mm max hole depth, 3000 rpm spindle speed, three-axis portable CNC milling machine.
Spindle Speed3000 rpm
Max. Hole Depth384 mm (15.12 in)
Max X-Axis Travel203.2 mm (8 in)
GeniSYS Machine Width482.6 mm
Power Supply & Motion Control Height1013.5 mm (120.2 in)
Max Y-Axis Travel203.2 mm (8 in)
About This Product
Enerpac GENISYS4 (geniSYS IV) is a highly portable three-axis CNC milling machine. It can bore and thread hole diameters from 22.2 mm to 279.4 mm (0.875–11 in), with a maximum hole depth of 384 mm.
The machine has a 5 kW (6.7 HP) spindle motor and a spindle speed of 3000 rpm. Axis travel is 203.2 mm in X and Y and 431.8 mm in Z. The machine weighs 499 kg and the power supply and motion control cabinet weighs 120 kg.
It is designed for the accurate removal of cracked or broken studs up to 11 in diameter and the precise refurbishment of damaged threads, without manually controlled drilling or metal disintegration techniques. Typical examples include manway covers and reactor studs.
Features and Benefits
- CNC controlled: motion control software provides detailed real-time feedback on tool positioning and machine operation
- Bores and threads hole diameters from 22.2–279.4 mm, with hole depths up to 384 mm
- High tolerance profile rails produce consistent results
- Precision ground ball screws on all three axes provide precise movement of the milling head
- Cold cutting operation that ejects chips during operation
- A single machine capable of both drilling and threading
Enerpac GENISYS4
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Spindle Speed3000 rpm
Max. Hole Depth384 mm (15.12 in)
Max X-Axis Travel203.2 mm (8 in)
Power Supply & Motion Control Cabinet Weight120 kg (265 lbs)
GeniSYS Machine Width482.6 mm
Power Supply & Motion Control Height1013.5 mm (120.2 in)
Max Y-Axis Travel203.2 mm (8 in)
Minimum Hole Diameter22.2 mm (0.875 in)
Max Z-Axis Travel431.8 mm (17 in)
Machine Length604.5 mm (23.8 in)
Machine Width19 in
ApplicationsDrilling, Stud Removal
Machine Height1311 mm (51.6 in)
Product TypeThree Axis
SeriesgeniSYS - IV
Spindle Motor5 kW
Power Supply/Motion Control Width624.8 mm (24.6 in)
Spindle Motor Power6.7 hp
Product LineMachining Tools
Weight499 kg (1100 lbs)
Max. Hole Diameter279.4 mm (11 in)
Power Supply Motion Control Length34.8 in
Power Supply/Motion Control Length883.9 mm
