How can I get a price quote for Enerpac GBJ100?

You can request a fast quote for Enerpac GBJ100 from Yılsa Engineering. Reference part number CEY-937FC7807999. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac GBJ100 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac GBJ100 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac GBJ100?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

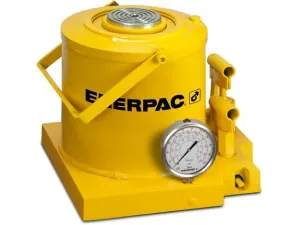

Enerpac GBJ100 100 ton bottle jack

Enerpac GBJ100; 100 ton (980 kN) capacity, 150 mm stroke, 300 mm collapsed height, industrial hydraulic bottle jack.

EnerpacMFR # GBJ100SKU # CEY-937FC7807999

Capacity980,0 kN (100 ton · 110 ton)

Country of OriginSpain

Screw Extension- in

ApplicationsLift

Saddle Diameter94,0 mm (3.70 in)

Product TypeBottle Jack

Have questions?Chat on WhatsApp

About This Product

The GBJ100 is a 100 ton (980 kN) industrial hydraulic bottle jack from the Enerpac GBJ series. It offers a 150 mm stroke, with a collapsed height of 300 mm and an extended height of 450 mm. Plunger diameter is 110 mm and saddle diameter is 94 mm. The base plate measures 296 x 333 mm and the jack weighs 87 kg. It is used in lifting applications. The swivelling pump and safety relief valve support easier and safer handling of heavy loads.

Features and Benefits

100 ton (980 kN) capacity, 150 mm stroke
Positioning handle included
Swivelling pump for improved ergonomics
Lower handle effort reduces operator fatigue
Safety relief valve prevents overload
Automatic by-pass port prevents over-extension

Enerpac GBJ100

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Capacity980,0 kN (100 ton · 110 ton)

Country of OriginSpain

Screw Extension- in

ApplicationsLift

Saddle Diameter94,0 mm (3.70 in)

Product TypeBottle Jack

Screw Extension- mm

SeriesGBJ

Bottom Plate Dimensions (W x L)296 x 333 mm (11.65 x 13.11 in)

Stroke150 mm (5.91 in)

Extended Height450 mm (17.72 in)

Plunger Diameter110 mm (4.33 in)

Product LineIndustrial Tools

Weight87,0 kg (191.8 lbs)

Collapsed Height300 mm (11.81 in)

Documents & CAD

For this product 1

Repair Parts SheetGBJ Series Bottle JackPDF·285 KB·English

Series documents 5· shared by this product series

Instruction ManualGBJ Series Hydraulic Bottle JacksPDF·16.7 MB 4 languages· in one file

Instruction ManualGBJ Series Bottle JackPDF·8.4 MB 4 languages· in one file

Repair Parts SheetGBJ Series Hydraulic Bottle Jacks RPSPDF·416 KB·English

CertificateEC2A-BottleJacks-GBJ_RevC_Feb2024PDF·135 KB

BrochureGBJ-Series Steel Bottle Jacks; EnglishPDF·391 KB

CAD Files 3

3D Model
