Enerpac F0185A0060XA-SK

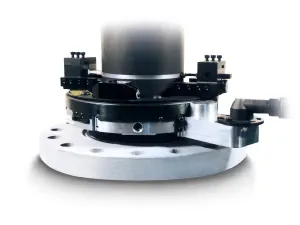

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac F0185A0060XA-SK External Casing Cutter 174.63 mm

Enerpac F0185A0060XA-SK; air-driven external casing cutter, 174.63 mm (6.88 in) max mounting size, 155.58–174.63 mm mounting range, 31.9 kg.

EnerpacMFR # F0185A0060XA-SKSKU # YLSCJLHAADVAKP4
Dimension E120.7 mm (4.75 in)
Mounting Range155.58 - 174.63 mm (6.13 - 6.88 in)
Mounting Range (1 3/4" Ext.)- mm
Dimension D114.3 mm (4.5 in)
Mounting Range (1 1/4" Ext.)- mm
Drive TypeAir
Share
Have questions?Chat on WhatsApp

About This Product

F0185A0060XA-SK is an air-driven external casing cutter from the F0185 series. It uses the NB clamshell narrow body platform with a low profile motor and mount configuration, making it suited to flush mount applications. Maximum mounting size is 174.63 mm (6.88 in) with a mounting range of 155.58–174.63 mm. Mounting ranges with extensions: 130.18–149.23 mm with a 12.7 mm (1/2 in) extension and 104.78–123.83 mm with a 25.4 mm (1 in) extension. Dimensions are A 294.64 mm, B 76.2 mm, C 57.2 mm, D 114.3 mm and E 120.7 mm; weight is 31.9 kg. The bi-directional drive and low profile pneumatic motor allow flush mounting. The drive motor can be adjusted if obstructions are present.

Features and Benefits

  • Bi-directional drive and low profile pneumatic motor allow flush mounting
  • Drive motor can be adjusted if obstructions are present
  • Uses the proven NB series split frame clamshell platform
  • Accepts a wide range of standard clamshell accessories
  • Mounting range 155.58–174.63 mm; down to 104.78 mm with extensions

Enerpac F0185A0060XA-SK

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Dimension E120.7 mm (4.75 in)
Mounting Range155.58 - 174.63 mm (6.13 - 6.88 in)
Mounting Range (1 3/4" Ext.)- mm
Dimension D114.3 mm (4.5 in)
Mounting Range (1 1/4" Ext.)- mm
Drive TypeAir
Mounting Range (1/2" Ext.)130.18 - 149.23 mm (5.13 - 5.88 in)
Dimension C57.2 mm (2.25 in)
Mounting Range (3/4" Ext.)- mm
Dimension B76.2 mm (3 in)
Mounting Range (1" Ext.)104.78 - 123.83 mm (4.13 - 4.88 in)
Product TypeExternal Casing Cutter
Mounting Range (2" Ext.)- mm
SeriesF0185
Machine ID174.63 mm (6.88 in)
Dimension A294.64 mm (11.60 in)
Product LineMachining Tools
Weight31.9 kg (70.4 lbs)
Clamshell SizeNB6
