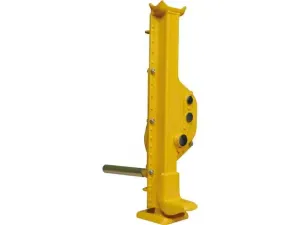

Enerpac CJ50 49 kN Rack Jack

Enerpac CJ50; 5.51 ton (49 kN) head/toe capacity, 300 mm stroke, 725 mm height, 28 kg mechanical rack jack.

EnerpacMFR # CJ50SKU # CEY-7B4B2D99A781

Dimension G70 mm (2.76 in)

Dimension E236 mm (9.29 in)

Head/Toe Capacity49 kN (5.51 ton)

Country of OriginChina

Dimension F525 mm (20.67 in)

Dimension D250 mm (9.84 in)

Have questions?Chat on WhatsApp

About This Product

CJ50 is a mechanical rack jack from the Simplex CJ series. Loads can be lifted at full capacity either on the clawed head or on the fixed toe, making it suitable for jobs where the jack must get under loads close to the ground. The jack offers 5.51 ton (49 kN) head/toe capacity, 300 mm (13.78 in) stroke and 725 mm collapsed height. It weighs 28 kg. A safety crank with folding handle and an optimal gear ratio keep the required operating force low. It is CE compliant and its design meets or exceeds ANSI/ASME B30.1 safety standards. Typical uses include machinery moving and positioning, maintenance, assembly and general load lifting.

Features and Benefits

Rated for full capacity at both head and toe lifts
Lifting with either fixed toe or clawed head
Low expenditure of force through optimal ratio
Safety crank with folding handle
CE compliant; meets or exceeds ANSI/ASME B30.1 standards
Suitable for lifting loads of any type

Enerpac CJ50

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G70 mm (2.76 in)

Dimension E236 mm (9.29 in)

Head/Toe Capacity49 kN (5.51 ton)

Country of OriginChina

Dimension F525 mm (20.67 in)

Dimension D250 mm (9.84 in)

Dimension C211 mm (8.31 in)

Capacity49 kN (5.51 ton)

Dimension B68 mm (2.68 in)

Power SourceMechanical

Dimension I300 mm

Dimension H725 mm (28.54 in)

Product TypeRack Jacks

SeriesCJ

Stroke300 mm (13.78 in)

Dimension A110 mm (4.33 in)

Product LineMechanical Tools

Weight28 kg (61.72 lbs)

Collapsed Height725 mm (28.54 in)
