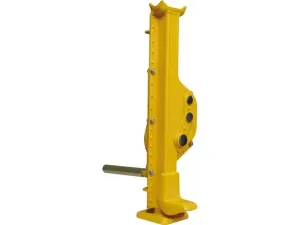

Enerpac CJ100 99 kN Rack Jack

Enerpac CJ100; 99 kN (11.13 ton) head/toe capacity, 300 mm stroke, mechanical rack jack with safety crank and folding handle.

EnerpacMFR # CJ100SKU # CEY-55221B120A7D

Dimension G80 mm (3.15 in)

Dimension E297 mm (11.69 in)

Head/Toe Capacity99 kN (11.13 ton)

Country of OriginChina

Dimension F590 mm (23.23 in)

Dimension D300 mm (11.81 in)

Have questions?Chat on WhatsApp

About This Product

CJ100 is a CJ series mechanical rack jack offered under the Simplex brand. It is rated for full capacity of 99 kN (11.13 ton) at both head and toe; stroke is 300 mm, collapsed height is 800 mm and weight is 46 kg. Loads can be lifted on the fixed toe or on the clawed head. An optimal gear ratio keeps operating force low, and the jack is fitted with a safety crank with folding handle. It is CE compliant and its design meets or exceeds ANSI/ASME B30.1 safety standards. It is suitable for lifting loads of any type in machine installation, lifting and aligning heavy equipment, maintenance and assembly work.

Features and Benefits

Full capacity at both head and toe: 99 kN (11.13 ton)
300 mm stroke, 800 mm collapsed height
Lifting with either fixed toe or clawed head
Low expenditure of force through optimal ratio
Safety crank with folding handle
CE compliant; meets or exceeds ANSI/ASME B30.1 safety standards

Enerpac CJ100

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G80 mm (3.15 in)

Dimension E297 mm (11.69 in)

Head/Toe Capacity99 kN (11.13 ton)

Country of OriginChina

Dimension F590 mm (23.23 in)

Dimension D300 mm (11.81 in)

Dimension C257 mm (10.12 in)

Capacity99 kN (11.13 ton)

Dimension B70 mm (2.76 in)

Power SourceMechanical

Dimension I300 mm

Dimension H800 mm (31.5 in)

Product TypeRack Jacks

SeriesCJ

Stroke300 mm (13.78 in)

Dimension A140 mm (5.51 in)

Product LineMechanical Tools

Weight46 kg (101.41 lbs)

Collapsed Height800 mm (31.5 in)
