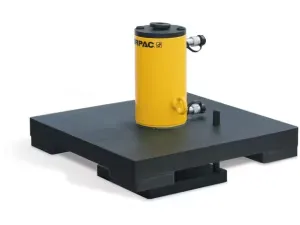

Enerpac BLS2006 220 ton Climbing Jack

Enerpac BLS2006; 220 ton capacity, 151 mm (5.94 in) stroke, 700 bar (10,000 psi) operating pressure, double-acting hydraulic climbing jack with tilt saddle.

EnerpacMFR # BLS2006SKU # CEY-7B4B2D9A058C

Dimension N135 mm (5.31 in)

Oil Capacity (Advance)4332 cm³ (264.35 in³)

Dimension C387 mm (15.24 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)2209 cm³ (134.8 in³)

ApplicationsLift, Lower, Hold

Have questions?Chat on WhatsApp

About This Product

BLS2006 is a 200 ton class hydraulic climbing jack from the Enerpac BLS series. It provides 220 tons of advance capacity and 113 tons (1017 kN) of retract capacity, with a 151 mm (5.94 in) stroke and a maximum operating pressure of 700 bar (10,000 psi). Oil capacity is 4332 cm³ for advance and 2209 cm³ for retract; the effective advance area is 44.21 in². The jack weighs 370 kg (815 lb), is supplied with a CR400 coupler and is made in the Netherlands. With an integral tilt saddle (up to 5°), a large base and an anti-rotation rod, it is used for lifting, lowering and holding heavy loads.

Features and Benefits

Integral tilt saddle with a maximum tilt angle of up to 5°
Large base with anti-rotation rod for stability and safety
Built-in safety valve prevents accidental over-pressurization
Baked enamel finish for increased corrosion resistance
CR400 coupler included

Enerpac BLS2006

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N135 mm (5.31 in)

Oil Capacity (Advance)4332 cm³ (264.35 in³)

Dimension C387 mm (15.24 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)2209 cm³ (134.8 in³)

ApplicationsLift, Lower, Hold

Dimension K550 mm (21.65 in)

Dimension I1.46 in

Maximum Cylinder Capacity (Advance)1995 kN (220 ton)

Coupler UsedCR400 Coupler

Dimension J1270 mm (10.63 in)

Product TypeClimbing Jack

Dimension L575 mm (22.64 in)

SeriesBLS

Dimension J130 mm (5.12 in)

Max. Cylinder Retract Capacity113 ton

Dimension A510 mm (20.08 in)

Product LineIndustrial Tools

Maximum Cylinder Capacity (Retract)1017 kN

Weight373 kg (815 lbs)

Cylinder Class200 ton

Country of OriginNetherlands

Dimension F133 mm (5.24 in)

Dimension D248 mm (9.76 in)

Cylinder Effective Area (Advance)285,6 cm² (44.21 in²)

Cylinder Effective Area (Retract)145,6 cm²

Dimension B661 mm (26.02 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)22.5 in²

Cylinder MaterialSteel

Dimension H102 mm (4.02 in)

Dimension M140 mm (5.51 in)

Stroke151 mm (5.94 in)

Return TypeDouble-Acting, Hydraulic Return

Documents & CAD

For this product 1

Repair Parts SheetBlS Series Climbing Jack, Model BlS-2006PDF·637 KB·English

Series documents 2· shared by this product series

BrochureBLS-Series Climbing Jacks; EnglishPDF·297 KB

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB
