How can I get a price quote for Enerpac AD193?

You can request a fast quote for Enerpac AD193 from Yılsa Engineering. Reference part number CEY-7B4B2D99974A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac AD193 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac AD193 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac AD193?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

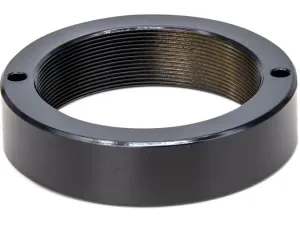

Enerpac AD193 25 Ton Retainer Nut

Enerpac AD193; 3.250-16 UN retainer nut for 25 ton class RD series cylinders, locking foot or flange mountings.

EnerpacMFR # AD193SKU # CEY-7B4B2D99974A

Dimension E25 mm (1 in)

Country of OriginUnited States

Dimension D6.8 mm (0.27 in)

Compatible Cylinder SeriesRD

Dimension C95 mm (3.75 in)

Dimension B108 mm (4.25 in)

Have questions?Chat on WhatsApp

About This Product

AD193 is a retainer nut for Enerpac RD series 25 ton class cylinders. It tightens onto the cylinder collar threads to lock foot or flange mountings in place. It is included with foot and flange mounting kits and is also available separately as a replacement. Thread size is 3.250-16 UN. Other key dimensions are B 108 mm (4.25 in), C 95 mm (3.75 in), D 6.8 mm (0.27 in) and E 25 mm (1 in). Country of origin is the United States. It is used when mounting RD cylinders to tooling, fixtures and machine structures, or to replace a lost or damaged nut.

Features and Benefits

Compatible with RD series 25 ton class cylinders
Tightens onto the cylinder collar with 3.250-16 UN thread
Locks foot and flange mountings
Included as standard with foot and flange mounting kits

Enerpac AD193

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E25 mm (1 in)

Country of OriginUnited States

Dimension D6.8 mm (0.27 in)

Compatible Cylinder SeriesRD

Dimension C95 mm (3.75 in)

Dimension B108 mm (4.25 in)

Product TypeRetainer Nut

SeriesAD

Capacity Class25 ton

For Use with Cylinder Capacity25 ton

Dimension A3.250-16 UN mm

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

For this product 1

2D DrawingAD193 drawingPDF·42 KB

Series documents 1· shared by this product series

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB

CAD Files 3

3D Model
