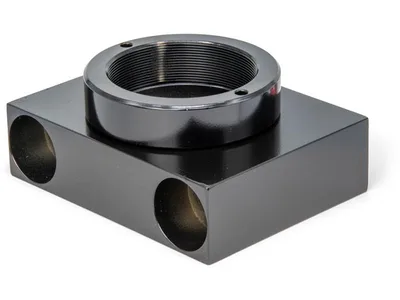

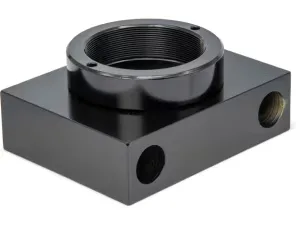

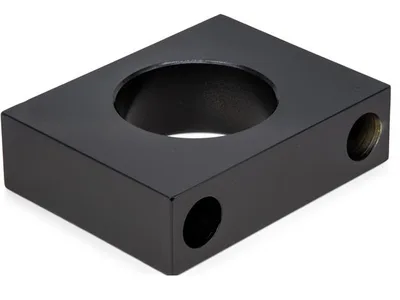

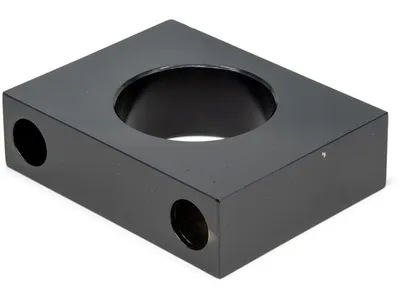

Enerpac AD191 25 Ton Foot Mount Attachment

Enerpac AD191; foot mounting attachment with retainer nut for 25 ton RD series cylinders; mounts onto the cylinder collar.

EnerpacMFR # AD191SKU # CEY-0681555D6D28

Dimension E44.4 mm (1.75 in)

Country of OriginUnited States

Dimension F124 mm (4.88 in)

Dimension D26.2 mm (1.03 in)

Compatible Cylinder SeriesRD

Dimension C117 mm (4.62 in)

Have questions?Chat on WhatsApp

About This Product

AD191 is an Enerpac AD series cylinder accessory: a foot mounting attachment with retainer nut designed for 25 ton RD series cylinders. It mounts onto the cylinder collar; mounting screws are not included. Main dimensions: A 82 mm (3.25 in), B 158.8 mm (6.25 in), C 117 mm (4.62 in), D 26.2 mm (1.03 in), E 44.4 mm (1.75 in), F 124 mm (4.88 in), H 63.5 mm (2.5 in). Country of origin is the United States. It is used in press, fixture and industrial applications where the cylinder must be securely mounted to a surface or fixture.

Features and Benefits

Compatible with 25 ton RD series cylinders

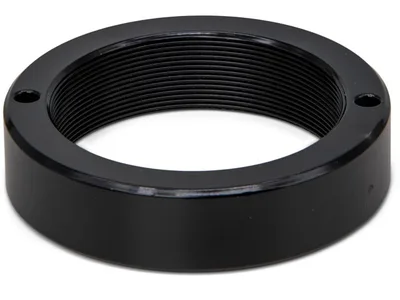

Mounts onto the cylinder collar with retainer nut
Allows secure mounting of the cylinder to a surface or fixture
Compact dimensions: 158.8 x 124 mm base, 63.5 mm height (H)
Mounting screws not included

Enerpac AD191

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E44.4 mm (1.75 in)

Country of OriginUnited States

Dimension F124 mm (4.88 in)

Dimension D26.2 mm (1.03 in)

Compatible Cylinder SeriesRD

Dimension C117 mm (4.62 in)

Dimension B158.8 mm (6.25 in)

Dimension H63.5 mm (2.5 in)

Product TypeFoot Mount

SeriesAD

Capacity Class25 ton

For Use with Cylinder Capacity25 ton

Dimension A82 mm (3.25 in)

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

For this product 2

2D DrawingAD191 drawingPDF·32 KB

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB
