How can I get a price quote for Enerpac A92?

You can request a fast quote for Enerpac A92 from Yılsa Engineering. Reference part number CEY-2E49288C331B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac A92 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac A92 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac A92?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

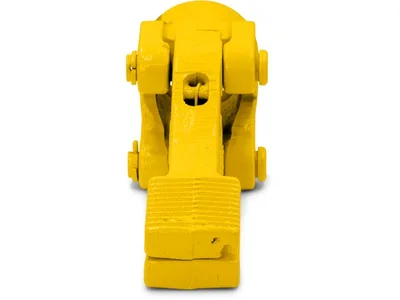

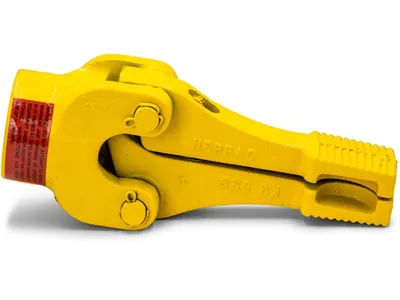

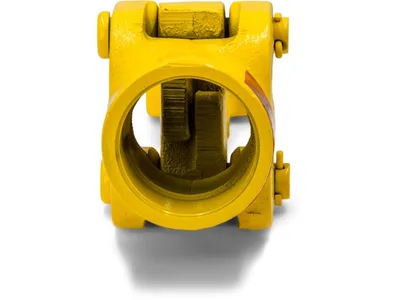

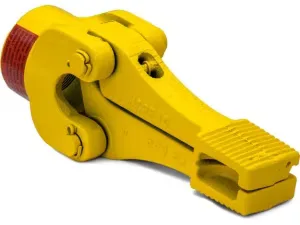

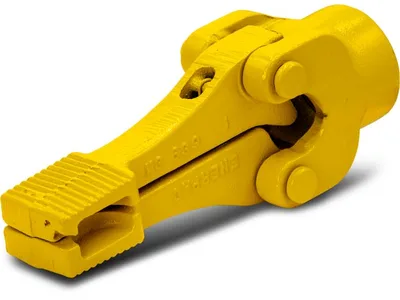

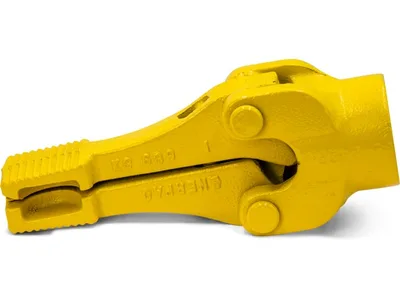

Enerpac A92 1 ton Spreader Attachment

Enerpac A92; 1 ton capacity, fits gaps as small as 35 mm, expands up to 158 mm; hydraulic spreader attachment for 10 ton RC-Series cylinders.

EnerpacMFR # A92SKU # CEY-2E49288C331B

Country of OriginUnited States

Length244 mm (9.63 in)

Compatible Cylinder SeriesRC

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsSpread

Product TypeSpreader

Have questions?Chat on WhatsApp

About This Product

The A92 is a cylinder attachment that converts a 10 ton Enerpac RC-Series hydraulic cylinder into a wedge spreader. It allows spreading and lifting applications up to 1 ton capacity without the need for a separate spreading tool. The attachment screws onto RC102, RC104, RC108, RC1010 and RC1014 cylinders; the RC101 is not compatible. The resulting tool is a single-acting, spring return hydraulic spreader that fits into gaps as small as 35 mm (1.38") and expands up to 158 mm (6.25"). Maximum load capacity is 1 ton, and maximum system pressure must be limited to half the rated pressure, 350 bar (5,000 psi). Length is 244 mm (9.63") and weight is 3.6 kg (8 lbs). It is used in a range of industrial spreading applications such as maintenance, assembly and disassembly.

Features and Benefits

Converts a 10 ton RC cylinder into a 1 ton capacity spreader
Compatible with RC102, RC104, RC108, RC1010 and RC1014 (RC101 not compatible)
Fits gaps as small as 35 mm and expands up to 158 mm
Screw-on mounting; no separate spreading tool required
System pressure must be limited to 350 bar (5,000 psi)

Enerpac A92

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Length244 mm (9.63 in)

Compatible Cylinder SeriesRC

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsSpread

Product TypeSpreader

Cylinder Capacity with Attachment1 ton

SeriesA - Spreader

Capacity Class1 ton

For Use with Cylinder Capacity1,0 ton

Capacity1.00 ton

Stroke35 mm

Product LineIndustrial Tools

Weight3,6 kg (8 lbs)

Documents & CAD

For this product 2

Repair Parts SheetSpreaderPDF·145 KB·English

2D DrawingA92 drawingPDF·407 KB

Series documents 3· shared by this product series

Instruction ManualSpread CylindersPDF·1.1 MB·English

CertificateEC2B-SPREADER_RevN_Oct2022PDF·427 KB

BrochureA-WR-Series Wedgie Spread Cylinders; EnglishPDF·256 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

A92A-92A 92Enerpac A92Enerpac A-92A92 spreaderA92 spreader attachmentEnerpac A series spreaderEnerpac RC series attachmentEnerpac RC cylinder accessoryRC102 spreader attachmentRC104 spreader attachmentRC108 spreader attachmentRC1010 spreader attachmentRC1014 spreader attachment1 ton hydraulic spreader10 ton cylinder spreader attachmenthydraulic wedge spreadercylinder spreader attachment35 mm gap hydraulic spreaderRC cylinder spreader tip
