How can I get a price quote for Baldor XL050245A?

You can request a fast quote for Baldor XL050245A from Yılsa Engineering. Reference part number YLSDBRA8GUGFGRB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor XL050245A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor XL050245A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor XL050245A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor XL050245A

XL050245A

BaldorMFR # XL050245ASKU # YLSDBRA8GUGFGRB

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.250 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor XL050245A (XL050245A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor XL050245A — price, stock availability and technical specifications.

Baldor XL050245A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.250 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP C,D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.200 A @ 115.0 V · 2.100 A @ 230.0 V · 2.000 A @ 208.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load62.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.0 a

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor type3414L

Mounting arrangementF1

Number of poles4

Overall length13.22 IN

Power factor64

Product familyHazardous Location Motor

Pulley face codeStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationEP

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568973035

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Specification number34-0000-0419

Catalog numberXL050245A

Horsepower (HP).25

Temperature codeT3C

Voltage (V)115/208-230

Current (A)4.2/2-2.1

Speed (rpm)1725 34WGY855

Frequency (Hz)60

Phase1

Insulation classB

Service factor1.00

NEMA design letterN

Code letter (locked rotor kVA)L

Rating40C AMB-CONT

Frame size56

NEMA nominal efficiency (%)62

Power factor64

Nameplate numberNP0301XPSL

Performance

General characteristics· 230 V, 60 Hz, 0.25 hp

Line-to-line resistance at 25 °C (ohms)9.23 Ω / 8.97 Ohms B Ph

Temperature rise at rated load (°C)43° C

Start configurationDOL

Breakdown torque2.38 lb-ft

Pull-up torque1.68 lb-ft

Locked-rotor torque2.83 lb-ft

Starting current (A)10.8 A

Line-to-line resistance at 25 °C (ohms)2.22 Ω / 8.87 Ohms B Ph

Start configurationDOL

Breakdown torque2.38 lb-ft

Pull-up torque1.68 lb-ft

Locked-rotor torque2.83 lb-ft

Starting current (A)21.6 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	24	35	47	54	64	69	72
Efficiency %	0	35.2	50	60.6	61.8	65.7	71.6
Speed rpm	1791	1780	1767	1753	1738	1722	1711
Line amps A	1.67	1.69	1.78	1.88	2.07	2.23	2.35
Power W	94	135	193	236	304	356	389
Torque lb-ft	0	0.188	0.384	0.574	0.762	0.955	1.14

Documents & CAD

For this product 3

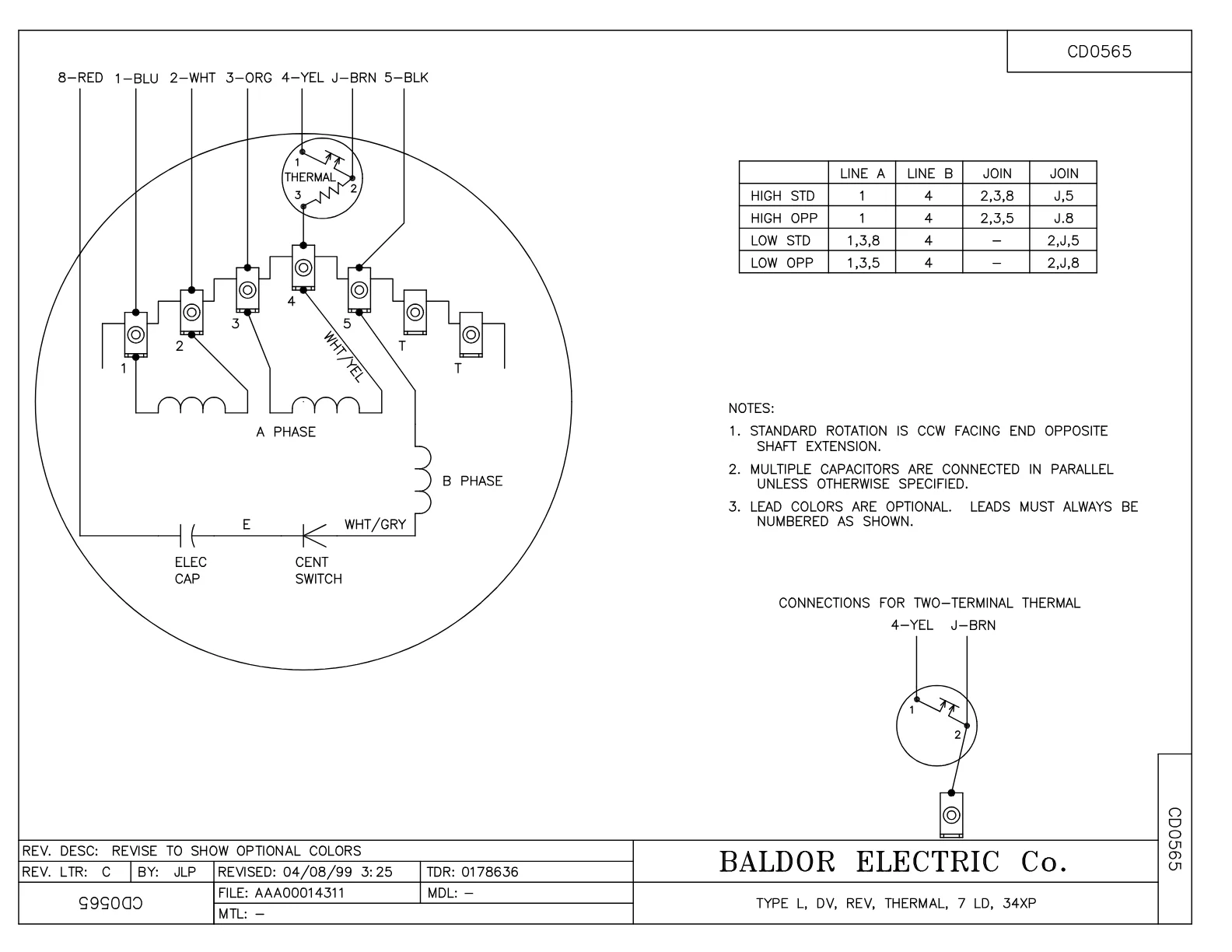

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·682 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·113 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor XL050245A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
EC1130A08SP	ELEC CAP 115V 1.125X2.750 X	1 pcs	13 motors
