Baldor IR3504M

IR3504M

BaldorMFR # IR3504MSKU # YLSPAWE8XNAVOV9

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor IR3504M (IR3504M) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor IR3504M — price, stock availability and technical specifications.

Baldor IR3504M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.600 A @ 208.0 V · 3.700 A @ 230.0 V · 7.400 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load68.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3421L

Mounting arrangementF1

Number of poles4

Overall length11.97 IN

Power factor66

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568853030

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberIR3504M

Specification number34S040S193G1

Horsepower (HP).5

Voltage (V)115/208-230

Current (A)7.4/3.6-3.7

Speed (rpm)1725

Frame size56

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)J

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)68

Power factor66

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 115 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)1.06 Ω / 3.13 Ohms B Ph

Temperature rise at rated load (°C)63° C

Start configurationDOL

Breakdown torque4.13 lb-ft

Pull-up torque3.6 lb-ft

Locked-rotor torque4.65 lb-ft

Starting current (A)33 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	17	35	47	57	64	70	72
Efficiency %	0	42	58	65.3	68	69.2	67.9
Speed rpm	1795	1783	1765	1750	1730	1710	1680
Line amps A	5.6	5.6	6	6.6	7.4	8.2	9.6
Power W	109	226	324	430	542	660	790
Torque lb-ft	0	0.375	0.75	1.13	1.5	1.88	2.25

Documents & CAD

For this product 3

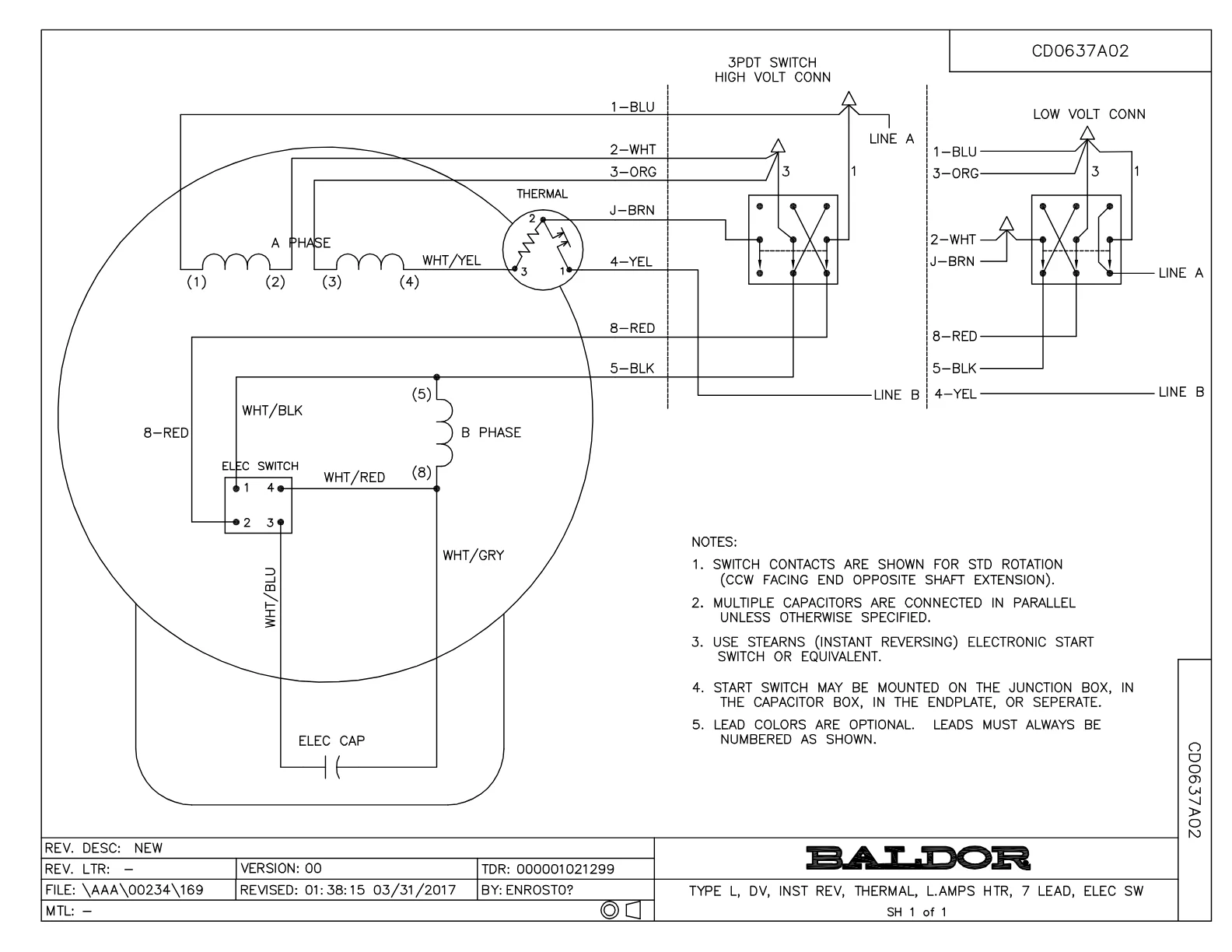

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·595 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·100 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 3

3D Model

SolidWorks.sldprt · 2.1 MB

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor IR3504M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1270A02SP	ELEC CAP, 270-324 MFD, 125V, 1.48D X 3.	1 pcs	65 motors
34EP3102A01SP	FR ENDPLATE, MACH	1 pcs	179 motors
34EP3102A02SP	FR/PU ENDPLATE, MACH	1 pcs	112 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
