How can I get a price quote for ABB 2CSF204568R1800?

You can request a fast quote for ABB 2CSF204568R1800 from Yılsa Engineering. Reference part number YLSFCJHMMAQ0CPQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSF204568R1800 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSF204568R1800 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSF204568R1800?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

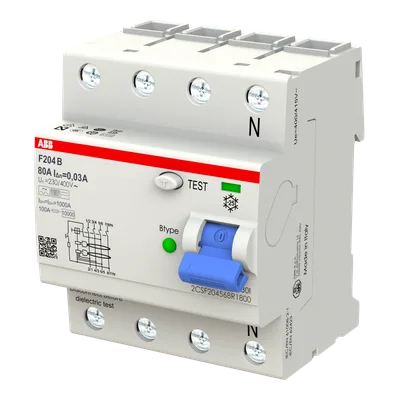

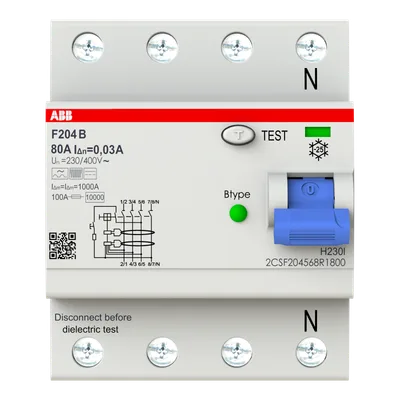

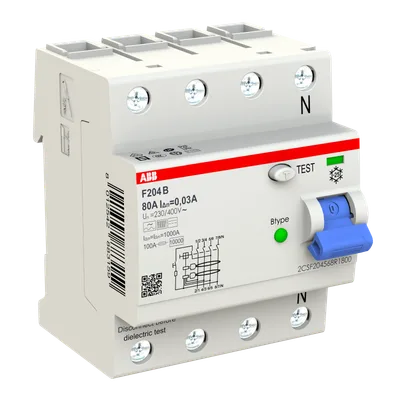

ABB 2CSF204568R1800

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.

ABBMFR # 2CSF204568R1800SKU # YLSFCJHMMAQ0CPQ

Extended Product TypeF204 B-80/0.03

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType B

Maximum Surge Current3 kA

Leakage Current TypeB

Power Supply ConnectionArbitrary

Have questions?Chat on WhatsApp

About This Product

ABB 2CSF204568R1800

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeF204 B-80/0.03

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 29.08 %, Recycled Cardboard - 61.23 %, Recycled Cardboard - 2.66 %, Recycled Paper - 0 %, Recycled Paper - 0 %

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType B

Rated Residual Breaking Capacity (IΔm)1 kA

Maximum Surge Current3 kA

Leakage Current TypeB

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Number of Poles4P

Position of Neutral TerminalsRight

Accessory TypeAuxiliary contact, Signal contact/auxiliary switch, Shunt trip, Undervoltage release, Overvoltage release, Motor operating device, Auto reclosing unit

Screw Terminal TypeCage Terminal

Accessories AvailableYes

Cable Cross-SectionFlexible Cable 1…35 mm², Rigid Cable 1…35 mm²

Wire Stripping LengthTop 12.7 mm, Bottom 14.9 mm

Rated Operational Voltageacc. to IEC 60898-1 400 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)80 A

Rated Residual Current30 mA

Rated Conditional Short-Circuit Current (Inc)(100 A Type gG fuse) 10 kA

Frequency (f)50/60 Hz
