Siemens BPZ:500-699103

Ürün Hakkında

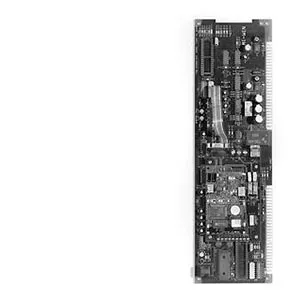

NIM-1W - Network arayüz modülü. A LifeLINK — Network arayüz modülü Fire alarm panel aksesuar, the NIM-1W is an MXL option modül which provides full peer to peer communication between MXL systems (MMB-1/2’s ve their sub-networks). The NIM-1W plugs into a full MOM-4 veya MOM-2 card cage slot ve communicates directly ile the MXL via TTL logic. It also provides a communication trunk path to network en çok 64 MXL systems, allowing a system kapasite of over 200,000 giriş nokta. Each MXL would require a NIM-1W in this configuration. The communication path will support the use of twisted pair copper veya fiber optic medium. The communication path can meet the requirements of either Style 4 veya Style 7 wiring ile all communication paths fully supervised. In an MXL network configuration using the NIM-1W, all tek MXL kontrol panels will be capable of çalışma in a full standalone mode during any failure of the network communication. Any MXL remaining connected on this network bus will continue to pass information ve provide komple inter-panel communication. Each MXL will contain its own integral application programming, which will include the ability to recognize ve act upon state changes in any other MXL in the network. The NIM-1W will be capable of communicating all LifeLINK network information to FireFinder, the Network Command Center. The NIM-1W also provides an RS-232 veya RS-485 port için bağlantı to foreign systems such as Building Management Systems. This port is to be used için primary veya secondary monitoring of the MXL(s) by the foreign system. kontrol of the MXL is not allowed through this port. All MXL menu functions are supported ve mevcut to the foreign system. The communication is bi-directional ve includes handshakes to verify that data sent by the MXL has been received by the monitoring system. The information mevcut from this yardımcı port is yazılım selectable in the MXL’s CSGM program. UL ve CUL Listed, ve FM, NYMEA, City of Chicago ve CSFM Approved.

Siemens BPZ:500-699103

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
