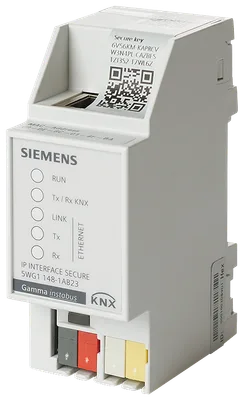

Siemens 5WG1148-1AB23

Ürün Hakkında

N 148/23 - KNX IP Interface Secure. For communication between KNX devices and PCs or other devices with Ethernet (10BaseT or 100BaseT) interface, for remote access to an KNX installation Uses the KNXnet/IP protocol or secured access and data transmission via KNXnet/IP Secure Up to five KNXnet/IP Tunneling connections for parallel bus access by ETS and further PC software Assignment of the network parameters by the installer using ETS, automatically by a DHCP server in the network 5 LEDs for display of availibility, KNX communication and IP communication Electronics powered via “Power over Ethernet” according to IEEE 802.3af or alternatively by an external safety extra low voltage power supply for AC/DC 24V Pluggable terminal block for connection of external power supply unit (not included) Ethernet connection via RJ45 socket Housing: plastic, color RAL 7035 (light grey), N-system DIN rail mounted device for mounting on rail TH35 according to DIN EN 60715 Type of protection: IP 20

Siemens 5WG1148-1AB23

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
