Siemens BPZ:500-697943BG

Ürün Hakkında

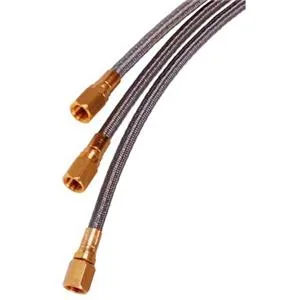

500-697943BG - Metal 1/4 inch Flex Hose 24 inch long. Used in Siemens - Fire Safety Sinorix Engineered Fire Suppression Systems, the flexible, braided hose is used to connect Siemens cylinder valves into a master / slave configuration: one (1) master cylinder supplies pressure açtırma için en çok seven (7) ek cylinders. Each of the three (3) mevcut hoses fit standart, male 37° flared tubing fittings, as well as have a maximum working pressure of 3000 psi ve a minimum burst pressure of 5000 psi. Swivel nuts fit each hose için bağlantı between the 1/8-inch (0,32 cm.) port marked ‘M’ on the master cylinder ve the 1/4-inch (0,64 cm.) tee slaves on the pressure actuators of the slave cylinders. Model MFH24, which is the 24-inch (61 cm.) uzunluk flex hose, is UL, ULC Listed as well as FM, CSFM ve NYCFD Approved.

Siemens BPZ:500-697943BG

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
