Siemens BPZ:500-633037

Ürün Hakkında

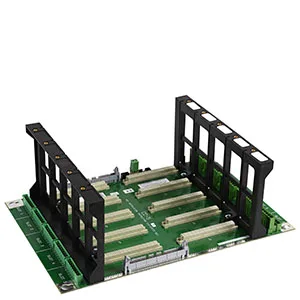

CC-5 - Card Cage 5 Slots. Designed için use ile Siemens Modular systems ve FireFinder XLS fire alarm kontrol panels (FACPs), the Model CC-5 card cage provides the physical montaj location ve all wiring bağlantı nokta için all fire, voice system options cards için the aforementioned Siemens panels. All cards plugged into the Model CC-5 card cage communicate ile other Siemens system modülleri via a common 60-pin data bus, which runs through the card cage. This subsequently makes all communication data buses ve signals mevcut to all cards. Connectors are provided on the left ve right side of the Model CC-5 to connect the 60-pin kablo için communications ile the operator arayüz, güç supplies ve amplifiers modülleri. There are no active components on the Model CC-5. All field wiring to devices ve circuits terminates on the Model CC-5 card cage. All cards are designed için use ile Model CC-5 route their field-wiring terminations to the top of a 5-slot card cage ve are all güç limited. Internal wiring connections that distribute 24VDC to cards veya high level audio signals (depending on the application used) connect to the bottom of a Model CC-5 ve are all non-power limited.

Siemens BPZ:500-633037

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
