Siemens BPZ:500-034110

Ürün Hakkında

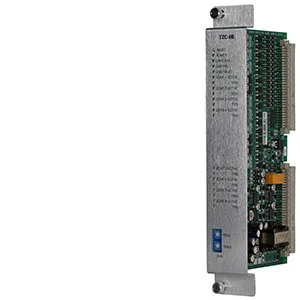

TZC-8B - Telephone bölge Card. Designed için use ile a Siemens Modular (veya a FireFinder XLS) fire-alarm kontrol panel, the Firefighter’s Telephone bölge Card (Model TZC-8B) provides a way için acil response personnel located throughout a building to speak to one another during acil situations. The card is a voice-system option modül that plugs into a Model CC-series (2 veya 5-slot) card cage, providing en çok eight (8) firefighters telephone bölge. The bölge have an off-hook acknowledge tone, as well as a Command Console busy tone. Each bölge is activated when a firefighters telephone station (FTS series) connected to that bölge is taken off-hook veya a portable handset (PFT series) is plugged into a phone jack (FJ series). When the bölge becomes active, the uzak telephone station will receive an off-hook acknowledge tone ve the programmed bölge light will begin flashing at the Command Console. Once selected by the operator, the bölge will be connected to the telephone riser in a multi-line mode ve the programmed bölge light will light steady. The active uzak telephone station(s) will receive a busy tone when the Command Console is presently connected to another telephone bölge. Each telephone bölge uses a single pair of wires ve is individually supervised in a sınıf B tip mode. bölge are also individually güç limited per NEC 760. Each bölge also contains transient koruma. en çok 5 telephone stations may be off-hook simultaneously in a party hat mode ile no loss of audio quality. The Telephone bölge Card (TZC-8B) is supervised by the Model DAC-NET Card, ve is assigned to one (1) of 99 DAC-NET sub addresses (CAN addresses).

Siemens BPZ:500-034110

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
