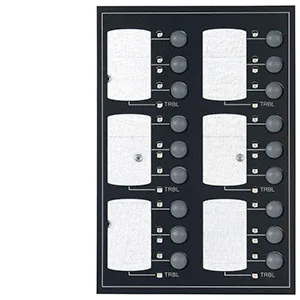

Siemens BPZ:500-033140

Ürün Hakkında

FCM-6 - fan kontrol anahtar modül (6 Switches). Designed için use in a Siemens Modular (veya FireFinder XLS) fire-alarm kontrol panel, Model FCM-6 is an option modül that provides manuel kontrol of building HVAC system fans, motors, ve dampers. Each FCM-6 modül provides six (6) sets of three (3) buton switches için manuel system kontrol. Each anahtar has three (3) associated LEDs to indicate fan / Damper / motor status: OFF (Red LED); ON (Green LED) ve TROUBLE (Yellow LED). When in the otomatik konum, the red ve green LEDs indicate fan / Damper / motor status (On veya Off) based on the system logic that can be programmed to automatically kontrol the fan çıkış. When manually switched to the OFF konum, the red LED will flash indicating that the çıkış circuit used to turn off the fan / Damper / motor has activated. The red LED will light solid-red to indicate positive feedback of the fan / Damper / motor actually turning OFF (via a monitored giriş). When manually switched to the ON konum, the green LED will flash indicating that the çıkış circuit used to turn on the fan / Damper / motor has activated. The green LED will light solid green to indicate positive feedback of the fan / Damper / motor actually turning on (via a monitored giriş). During system reset when switches are turned manually to the ON veya the OFF konum their associated çıkış do not change state. They stay either ON veya OFF based on the anahtar’s konum. çıkış will only change state when manually controlled via the ON / OFF anahtar veya based on system logic when anahtar is in the Auto konum. Each Model FCM-6 is mounted on a hinged panel as a parça of the Siemens Modular (veya FireFinder XLS) command-console muhafaza. Any combination of a Model SCM-8, LCM-8 veya a FCM-6 modül may be mounted on a Model ID-MP. A six (6) iletken kablo is supplied için interconnection of the modülleri. A 30-inch kablo (CCL) is mevcut için bağlantı between rows. Models SCM-8, LCM-8, ve FCM-6 can be remotely mounted en çok 1000 feet (304,8 m.) from the main muhafaza. Models REMBOX2 ve REMBOX4 lobby enclosures are required için uzak montaj of Model SCM-8, LCM-8 ve FCM-6. A Model CSB sounder is optionally mevcut için anahtar audible feedback için uzak montaj applications.

Siemens BPZ:500-033140

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
