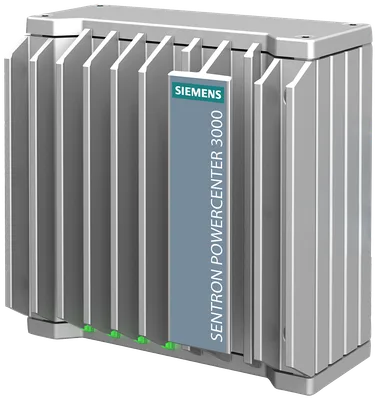

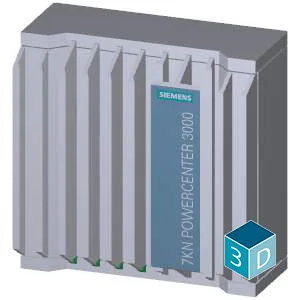

Siemens 7KN1310-0MC00-0AA8
SENTRON Powercenter 3000, güç Management System için SENTRON ve SIRIUS devices, acquisition, archiving, ve visualization of measured values, status information ve messages web server in 10 languages, optional data transmission to other Cloud platforms such as Insights Hub, AWS, Azure, supports energy management e.g. ISO 50001, 50003, 50006 ve energy audits, e.g. DIN 16247 commissioning ile SENTRON Powerconfig veya autonomously in the web UI
product brand nameSENTRON
product designationIoT gateway
product type designationPowercenter 3000
design of the housingDIN rail device
operating system pre-installedLinux
type of memoryDDR4
Ürün Hakkında
SENTRON Powercenter 3000, güç Management System için SENTRON ve SIRIUS devices, acquisition, archiving, ve visualization of measured values, status information ve messages web server in 10 languages, optional data transmission to other Cloud platforms such as Insights Hub, AWS, Azure, supports energy management e.g. ISO 50001, 50003, 50006 ve energy audits, e.g. DIN 16247 commissioning ile SENTRON Powerconfig veya autonomously in the web UI
Siemens 7KN1310-0MC00-0AA8
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationIoT gateway
design of the productready-to-use system for collecting, storing, ve evaluating data from low-voltage switchgear to support energy management according to ISO 50001, 50003, ve 50006
product type designationPowercenter 3000
design of the housingDIN rail device
General technical data
operating system pre-installedLinux
storage capacity of the main memory or RAM maximum2 Gibyte
type of memoryDDR4
storage capacity on hard disk32 Gbyte
number of interfaces according to USB2
Besleme gerilimi
minimum20,4 V
maximum28,8 V
type of voltage of the supply voltageDC
Protection class
protection class IPIP40
protection class IP on the frontIP20
Suitability
suitability for usePAC1600, PAC2200, PAC3100, PAC3120, PAC3200, PAC3200T, PAC3220, PAC4200, 3VA COM100, 3VA COM800, 3WL COM35, 3WL COM16, Modbus Device
suitability for use safety-related functionYok
Product details
product component hard disk driveVar
Communication
number of interfaces according to Industrial Ethernet2
MODBUS protocolVar
other protocolsVar
Number
number of supported devices32

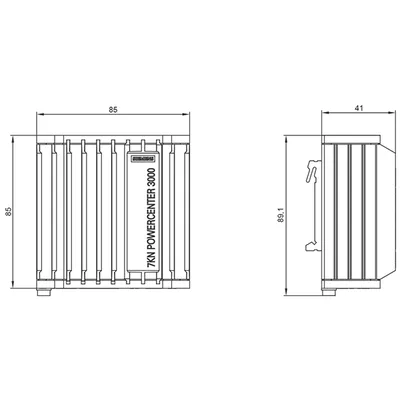

Mechanical Design
height85 mm
width85 mm
depth41 mm
fastening method rail mountingVar
Net Weight454 g
Environmental conditions
type of coating protection against pollution according to EN 60664-3Var
type of coating protection against pollution according to EN 60664-3Protection of type 1
relative humidity with condensation according to IEC 60068-2-38 maximum98 %
relative humidity with condensation according to IEC 60068-2-38RH incl. bedewing / frost (no commissioning in bedewed state), yatay mounting position
shock acceleration during operation according to EN 60068-2-27150 m/s², 11 ms
maximum55 °C
minimum-20 °C
maximum70 °C
Var
Class 3B2 mold ve fungal spores (except fauna);
Var
Class 3C4 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (severity 3); *
Var
Class 3S4 incl. sand, dust; *
resistance to biologically active substances conformity according to EN 60721-3-6Var
resistance to chemically active substances conformity according to EN 60721-3-6Class 6C3 (RH < 75 %) incl. salt spray in accordance with EN 60068-2-52 (severity 3); *
Var
Class 6S3 incl. sand, dust; *
Certificates
reference code according to IEC 81346-2K
Aksesuarlar 1
