Siemens 7KM4220-0BA01-1EA0 için nasıl fiyat teklifi alabilirim?

Siemens 7KM4220-0BA01-1EA0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSKPF29UOMZDRB ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 7KM4220-0BA01-1EA0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 7KM4220-0BA01-1EA0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 7KM4220-0BA01-1EA0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

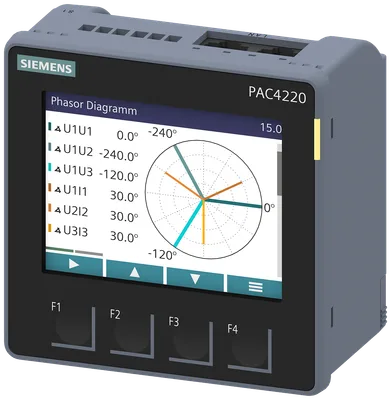

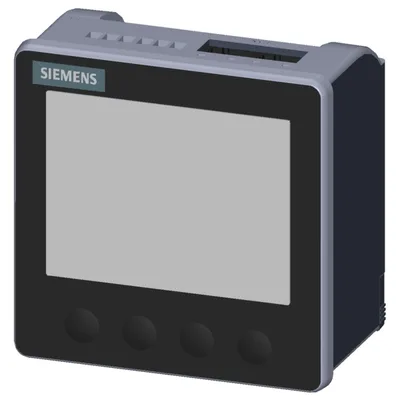

Siemens 7KM4220-0BA01-1EA0

SENTRON PAC4220, Power Monitoring Device with color graphic TFT display PMD-III acc. to IEC 61557-12 active energy Class 0.2 (Class 0.2S acc. to IEC 62053-22) 96 x 96 mm, 3-phase, 45 - 65 Hz Ue rated: 690/400 V, Ie rated: x/1 A or x/5 A AC/DC wide-range power supply 95 to 250 V +-10% (AC), 110 to 270 V +-10% (DC) screw terminal connection control panel instrument with measurement of electrical variables apparent / active / reactive energy / cos phi / THDu / THDi / even and odd harmonics per phase up to 64th

SiemensMFR # 7KM4220-0BA01-1EA0SKU # YLSKPF29UOMZDRB

product brand nameSENTRON

product type designation7KM PAC4220

for voltage measurementTRMS

for current measurementTRMS

type of measured value detectioncomplete

voltage curveSinusoidal veya distorted

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 7KM4220-0BA01-1EA0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model

product brand nameSENTRON

product designationMeasuring device for power system quality measurement

product type designation7KM PAC4220

Measurements

for voltage measurementTRMS

for current measurementTRMS

type of measured value detectioncomplete

voltage curveSinusoidal veya distorted

initial value45 Hz

full-scale value65 Hz

operating mode for measured value detection automatic line frequency detectionVar

set at 50 HzYok

set to 60 HzYok

Besleme gerilimi

design of the power supplyWide-range power supply

type of voltage of the supply voltageAC/DC

supply voltage at AC95... 250 V

apparent power consumption of the power supply9 V·A

Degree of protection protection class

protection class IP on the frontIP65

protection class IP of the terminalIP20

operating resource protection class when installedII

Suitability

suitability for operationInstallation in stationary panels in closed rooms

Product Functions

voltage measurementVar

current measurementVar

active power measurementVar

reactive power measurementVar

power factor measurementVar

frequency measurementVar

apparent energy/active energy/reactive energyVar

Display and operation

design of the displaycolor graphics TFT

height of the display54 mm

width of the display72 mm

color of the background of the displaywhite

illuminance of display backlight adjustableVar

time-controlled reduction of the illuminance of display backlight possibleVar

display contrast adjustableVar

national language on the display screen is supportedger, en, fr, spa, ita, por, tur, rus, chi, pol

number of keys4

Communication

transfer rate minimum10.000 kbit/s

transfer rate maximum100.000 kbit/s

number of interfaces according to Fast Ethernet2

type of electrical connection of the fast Ethernet interface2 x RJ45

protocol at the Ethernet interface is supportedMODBUS TCP

transfer rate 1 for Ethernet10 Mbit/s

transfer rate 2 for Ethernet100 Mbit/s

Fault limits

reference condition for metering accuracyaccording to IEC61557-12

for measured variable voltage+/- 0,2 %

for measured variable current+/- 0,2 %

for measured variable apparent power+/- 0,5 %

for measured variable active power+/- 0,2 %

for measured variable reactive power+/- 0,5 %

for measured variable output factor+/- 0,5 %

for measured variable active energyClass 0,2 according to IEC61557-12 ve/veya class 0.2S according to IEC62053-22

for measured variable reactive energyclass 0,5 acc. to IEC61557-12 veya IEC62053-23

for measured variable THD+/- 2 %

Inputs Outputs

number of digital inputs2

design of the switching inputelectronic, passive

type of electrical connection at the digital inputsscrew-type terminals

operating conditions for digital inputs external voltage supplyVar

input voltage at digital input at DC maximum30 V

number of digital outputs2

type of switching outputelectronic, passive

digital output versionswitching veya pulse output function

operating voltage as output voltage at DC maximum permissible30 V

type of electrical connection at the digital outputsscrew-type terminals

at digital output with signal <0> maximum0,2 mA

at digital output for signal <1> maximum50 mA

at the digital outputs at DC limited to 100 ms maximum130 mA

internal resistance at the digital outputs30 Ω

standard for pulse emitteraccording to IEC62053-31

initial value30 ms

full-scale value500 ms

adjustable time period minimum10 ms

switching frequency at digital output maximum20 Hz

property of the output short-circuit proofVar

measuring category for digital signalsCATIII

Measuring inputs

measurable supply voltage between (PE)N and L at AC maximum rated value400 V

minimum11,5 V

maximum480 V

measurable supply voltage between the line conductors at AC maximum rated value690 V

minimum20 V

maximum828 V

voltage measuring range extension with external voltage transformersyes

line conductors and neutral conductors internal resistance for voltage measurement1,62 MΩ

measuring category for voltage measurementCAT III

1 at AC rated value1 A

2 at AC rated value5 A

minimum1 %

maximum120 %

minimum10 %

maximum120 %

current measuring range extension with external current transformersVar

zero point suppression for current measurement0... 10 %

with measuring range 5 A per phase0,3 V·A

measuring category for current measurementCATIII

Connections

at the measurement inputs for voltage solid1x (0,2... 6 mm²), 2x (0,2... 1,5 mm²)

at the measurement inputs for voltage finely stranded with core end processing1x (0,2... 4 mm²), 2x (0,5... 2,5 mm²)

at the measurement inputs for voltage for AWG cables solid1x 24 to 10

at the measurement inputs for current solid1x (0,2... 6 mm²), 2x (0,2... 1,5 mm²)

at the measurement inputs for current finely stranded with core end processing1x (0,2... 4 mm²), 2x (0,5... 2,5 mm²)

at the measurement inputs for current for AWG cables solid1x 24 to 10

at the measurement inputs for voltagescrew-type terminals

at the measurement inputs for currentscrew-type terminals

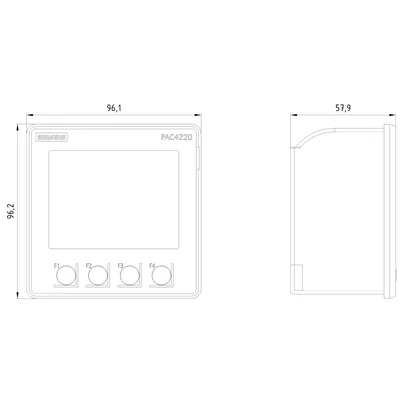

Mechanical Design

fastening method DIN-rail mountingYok

size of Power Monitoring Devicesize 96

height96 mm

width96 mm

depth56 mm

installation depth51 mm

mounting positiondikey

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-25 °C

maximum70 °C

relative humidity at 25 °C without condensation during operation maximum75 %

installation altitude at height above sea level maximum2.000 m

degree of pollution2

Certificates

certificate of suitability as EC Declaration of Conformityyes

Aksesuarlar 10

Siemens 7KM4220-0BA01-1EA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
7KM9900-0GA00-0AA0	Aksesuar
7KM9900-0XA00-0AA0	Aksesuar
7KM9900-0YA00-0AA0	Aksesuar
7KM9200-0AB00-0AA0	Aksesuar
7KM9200-0AD00-0AA0	Aksesuar
7KM9300-0AB01-0AA0	Aksesuar
7KM9300-0AM00-0AA0	Aksesuar
7KM9300-0AE02-0AA0	Aksesuar
7KM9300-0PP20-0AA0	Aksesuar
7KM4220-8BA01-1ED3	Aksesuar
