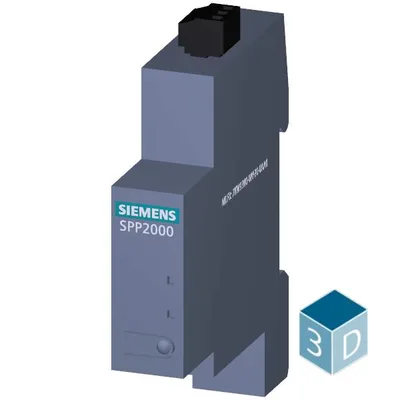

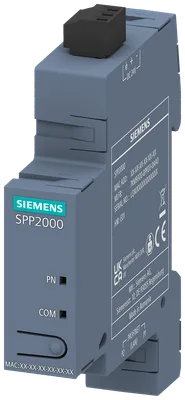

Siemens 7KM9300-0PP20-0AA0
SENTRON PROFINET Proxy (SPP), connectiosn Modbus TCP-capable SENTRON devices ile PROFINET IO, e.g. 7KM PAC2200 ve others SPP is an Ethernet anahtar ve transparent için IP comm.
product brand nameSENTRON
product designationPROFINET Proxy SPP2000
type of voltage supply24 VDC
type of transfer rate for plug type RJ45PROFINET with 100 Mbps
MTBF1.891,18 a
galvanic isolationMaximum insulation voltage: 500V AC
Ürün Hakkında
SENTRON PROFINET Proxy (SPP), connectiosn Modbus TCP-capable SENTRON devices ile PROFINET IO, e.g. 7KM PAC2200 ve others SPP is an Ethernet anahtar ve transparent için IP comm.
Siemens 7KM9300-0PP20-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationPROFINET Proxy SPP2000
type of voltage supply24 VDC
General technical data
type of update time at the PROFINET IO device with IRT1 ms, 2 ms, 4 ms by IRT
design of the interface according to PROFINET2 ports (switch)
type of transfer rate for plug type RJ45PROFINET with 100 Mbps
MTBF1.891,18 a
galvanic isolationMaximum insulation voltage: 500V AC
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750P
software version with STEP 7 in the TIA Portal requiredSTEP 7 V18
GSD version/revision with PROFINET requiredGSDML V2.4
number of interfaces according to PROFINET2
interface design 1 integrated switchVar
protocol at the 1st interface media redundancy protocolPROFINET MRP
PROFINET IO cihazıVar
transmission mode for Industrial EthernetPROFINET with 100 Mbps
product function at the Ethernet interface AutonegotiationVar
product function at the Ethernet interface AutocrossoverVar
open IE communicationVar
IRTVar
transfer rate for plug type RJ45 100 Mbit/sVar
service as PROFINET IO device supports PROFIenergyVar
protocol at the 1st interface media redundancy protocolVar
product function of the PROFINET IO controller is supported PROFINET system redundancyVar
TCP/IPVar
SNMPVar
LLDPVar
degree of pollution2 according to IEC 61131
minimum rated value28,8 V
maximum rated value19,2 V
Protection class
protection class IPIP20
protection class IP on the frontIP20
combustibility class according to UL 94V 0
suitability for use7KM PAC 2200 / PAC 3200T
suitability for use reactive power meterYok
Connections

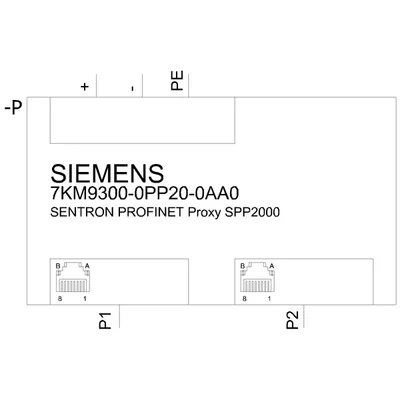

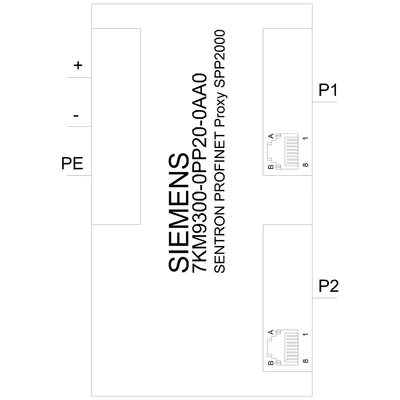

type of electrical connection2 x RJ45 socket, 1 x 3-pole printed-board connector
Mechanical Design
height90 mm
width18 mm
depth73 mm
fastening methodDIN Rail
Net Weight50 g
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-25 °C
maximum70 °C
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing8,6 kg
global warming potential [CO2 eq] / during sales0,0143 kg
global warming potential [CO2 eq] / during operation0 kg
global warming potential [CO2 eq] / after end of life-0.354 kg
global warming potential [CO2 eq] / total8,26 kg
