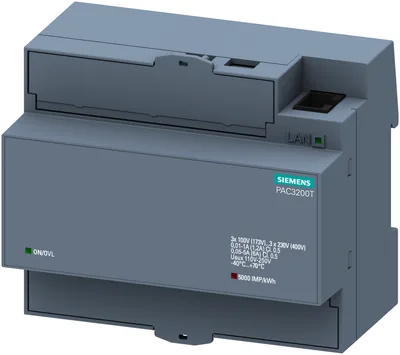

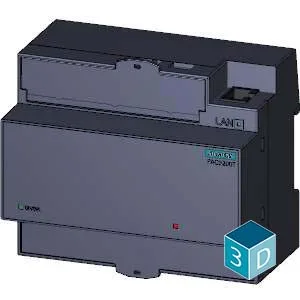

Siemens 7KM3200-0CA01-1AA0
SENTRON, measuring device, 7KM PAC3200T, DIN-rail enclosure without display, L-L: 400 V, L-N: 230 V, 5 A, DIN rail instrument, 3-phase, Modbus TCP, apparent / active / reactive energy, wide-voltage power supply unit, AC/DC, screw terminal
product brand nameSENTRON
product designationmultimeter
design of the productbasic
product type designation7KM PAC3200T
for voltage measurementTRMS
for current measurementTRMS
Ürün Hakkında
SENTRON, measuring device, 7KM PAC3200T, DIN-rail enclosure without display, L-L: 400 V, L-N: 230 V, 5 A, DIN rail instrument, 3-phase, Modbus TCP, apparent / active / reactive energy, wide-voltage power supply unit, AC/DC, screw terminal
Siemens 7KM3200-0CA01-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationmultimeter
design of the productbasic
product type designation7KM PAC3200T
Measurements
for voltage measurementTRMS
for current measurementTRMS
type of measured value detectioncomplete
voltage curveSinusoidal veya distorted
initial value45 Hz
full-scale value65 Hz
operating mode for measured value detection automatic line frequency detectionVar
set at 50 HzYok
set to 60 HzYok
Besleme gerilimi
design of the power supplyWide-range power supply
type of voltage of the supply voltageAC/DC
Suitability
suitability for operationStandard mounting rail device
Product Functions
voltage measurementVar
current measurementVar
active power measurementVar
reactive power measurementVar
Display and operation
design of the displayStandard mounting rail enclosure without display
number of keys4
Communication
protocol at the Ethernet interface is supportedMODBUS TCP
transfer rate 1 for Ethernet10 Mbit/s
transfer rate 2 for Ethernet100 Mbit/s
Fault limits
reference condition for metering accuracyIn accordance with IEC61557-12, IEC62053-22 ve IEC62053-23
Inputs Outputs
number of digital inputs1
operating conditions for digital inputs external voltage supplyVar
number of digital outputs1
type of switching outputsolid state
type of electrical connection at the digital outputsscrew-type terminals
Measuring inputs
measurable supply voltage between (PE)N and L at AC maximum rated value230 V
minimum46 V
maximum276 V
measurable supply voltage between the line conductors at AC maximum rated value400 V
voltage measuring range extension with external voltage transformersyes
line conductors and neutral conductors internal resistance for voltage measurement1 MΩ
measuring category for voltage measurementCAT III
1 at AC rated value1 A
2 at AC rated value5 A
minimum10 %
maximum120 %
current measuring range extension with external current transformersVar
zero point suppression for current measurement10 mA
for neutral conductor current45 mA
with measuring range 5 A per phase0,5 V·A
measuring category for current measurementCATIII

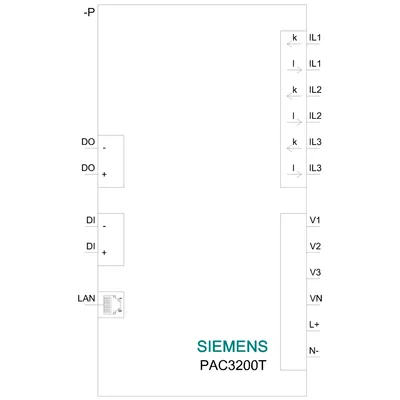

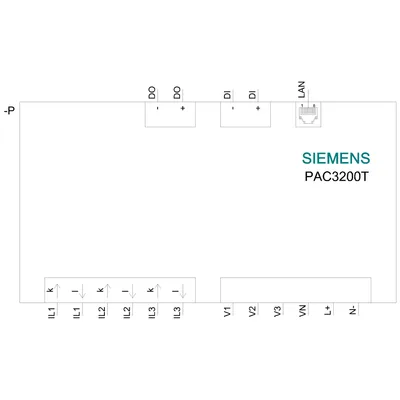

Connections
at the measurement inputs for voltagescrew-type terminals
at the measurement inputs for currentscrew-type terminals

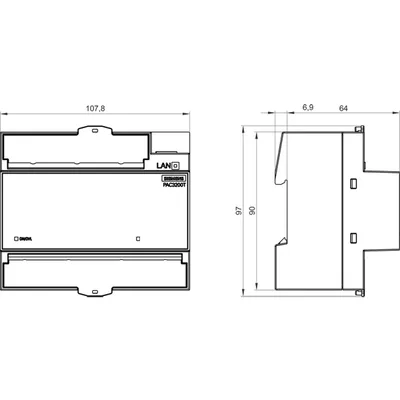

Mechanical Design
fastening method DIN-rail mountingVar
size of Power Monitoring Device6MW
height90 mm
width108 mm
depth64 mm
installation depth70,8 mm
mounting positionany
Aksesuarlar 1
Siemens 7KM3200-0CA01-1AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 7KM9300-0PP20-0AA0 | Aksesuar |
