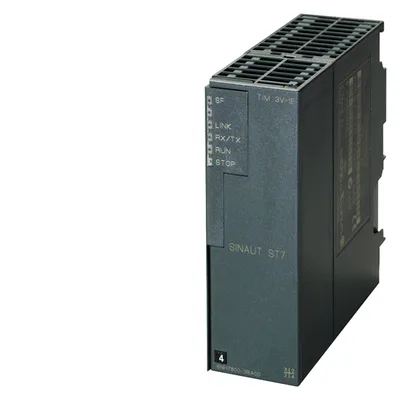

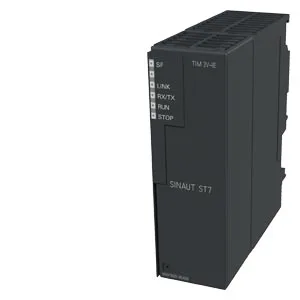

Siemens 6NH7800-3BA00
- - spare part - - SINAUT ST7, TIM 3V-IE communications module for SIMATIC S7-300 with an RS232 interface for SINAUT communication via a classic WAN and an RJ45 interface for SINAUT communication via an IP-based network (WAN or LAN).
product brand nameSINAUT ST7
for Industrial Ethernet10... 100 Mbit/s
according to RS 23250... 38400 bit/s
for power supply1
of Industrial Ethernet interfaceRJ45 port
for power supply2-pole plugable terminal block
Ürün Hakkında
- - spare part - - SINAUT ST7, TIM 3V-IE communications module for SIMATIC S7-300 with an RS232 interface for SINAUT communication via a classic WAN and an RJ45 interface for SINAUT communication via an IP-based network (WAN or LAN).
Siemens 6NH7800-3BA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSINAUT ST7
transfer rate
for Industrial Ethernet10... 100 Mbit/s
according to RS 23250... 38400 bit/s
interfaces
number of interfaces / according to Industrial Ethernet1
for external data transmission / according to RS 2321
for power supply1
of Industrial Ethernet interfaceRJ45 port
at interface 1 / for external data transmission9 pin Sub-D-connector (RS232)
for power supply2-pole plugable terminal block
C-PLUGYok
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage20,4... 28,8 V
supply voltage / external / at DC / rated value24 V
supply voltage / external / at DC / rated value20,4... 28,8 V
at 5 V5 %
relative positive tolerance / at DC / at 24 V5 %
relative negative tolerance / at DC / at 24 V5 %
from backplane bus / at DC / at 24 V / maximum0,2 A
from external supply voltage / at DC / at 24 V / maximum0,2 A
power loss [W]5,8 W
product extension / optional / backup batteryYok
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-300 single width
width40 mm
height125 mm
depth120 mm
net weight0,25 kg
product features, product functions, product components / general
per CPU / maximum1
noteNumber of TIM per S7-300
with RS 232 interface / maximum6 m
performance data / S7 communication
maximum8
with PG connections / maximum2
with OP connections / maximum8
SINAUT ST7 via S7 communicationVar
PG/OP communicationVar
performance data / multi-protocol mode
number of active connections / with multi-protocol mode12
performance data / telecontrol
node stationYok
substationVar
TIM control centerYok
noteRS232 ve Industrial Ethernet can not be operated in parallel
DNP3Yok
SINAUT ST1 protocolVar
SINAUT ST7 protocolVar
product function / data buffering if connection is abortedVar; 16,000 data messages
of S7 CPU work memory / for TD7onCPU mode data blocks on CPU / required20 Kibyte
of S7 CPU work memory / for TD7onTIM mode data blocks on TIM / required0 Kibyte
noteTD7onCPU: least 20 KB, actual requirement determined by data volume ve functional scope TD7onTIM: 0 bytes in most favorable case
product feature / buffered message frame memoryYok
for SINAUT ST1 protocol with polling / 11 bitVar
for SINAUT ST1 protocol with spontaneous / 10-bit or 11-bitVar
for SINAUT ST7 protocol with multi-master polling / 10-bitVar
for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitVar
with dedicated line/radio link / with SINAUT ST1 protocolPolling, polling with time slot procedure
with dedicated line/radio link / with SINAUT ST7 protocolPolling, polling with time slot procedure, multi-master polling with time slot procedure
with dial-up network / with SINAUT ST1 protocolspontaneous
with dial-up network / with SINAUT ST7 protocolspontaneous
for SINAUT ST1 protocol4
for SINAUT ST7 protocol4
product functions / management, configuration, engineering
requiredSINAUT ST7 ES
for CPU configuring / required / SINAUT TD7 block library for CPUVar
for PG configuring / required / SINAUT ST7 configuration software for PGVar
storage location / of TIM configuration dataon the TIM
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / security
operating mode / Virtual Private Network (VPN)Var; VPN operation as MSC client with MSC protocol ve password protection only possible in conjunction with GPRS modem with MSC capability
type of authentication / with Virtual Private Network / PSKVar
password protection for VPNVar
MSC client via GPRS modem with MSC capabilityVar
is supported / MSC protocolYok
key length / for MSC / with Virtual Private Network128 bit
as MSC client / with VPN connection1
as MSC server / with VPN connection0
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
