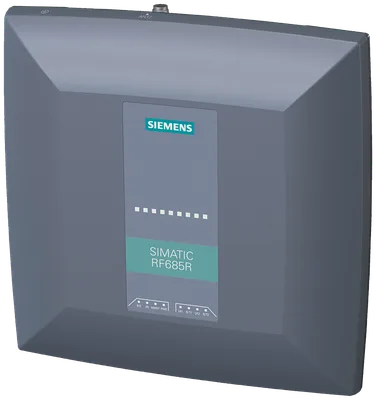

Siemens 6GT2811-6CA10-4AA0
halefi planned için 09/27 ARIB; Interfaces: Ethernet M12 PROFINET M12 1 dahili antenna+1 ext. antenna port, 4 dig. giriş/ 4 dig. çıkış, 24 V DC; IP65; -25 to +55 °C; olmadan aksesuar.
product brand nameSIMATIC RF
operating frequency916... 920 MHz
transmit power3... 1000 mW
for each external antenna / maximum4000 mW
minimum10 mW
maximum4000 mW
Ürün Hakkında
halefi planned için 09/27 ARIB; Interfaces: Ethernet M12 PROFINET M12 1 dahili antenna+1 ext. antenna port, 4 dig. giriş/ 4 dig. çıkış, 24 V DC; IP65; -25 to +55 °C; olmadan aksesuar.
Siemens 6GT2811-6CA10-4AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
suitability for operationRF600 Transponder, for direct connection to Ethernet, PROFINET, EtherNet/IP veya PROFIBUS via communication module, OPC UA server dahili
radio frequencies
operating frequency916... 920 MHz
transmit power3... 1000 mW
for each external antenna / maximum4000 mW
minimum10 mW
maximum4000 mW
protocol / with radio transmissionEPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62/-63
transfer rate / with radio transmission / maximum400 kbit/s
product feature / multitag-capableVar
polarizationLinear (h/v), circular, combined
electrical data
for write access / per byte / typical2 ms
for read access / per byte / typical0,15 ms
interfaces
number of external antennas1
standard for interfaces / for communicationEthernet, PROFINET, OPC UA, EtherNet/IP, RS422
for external antenna(s)RP-TNC
for supply voltageM12, 8-pin, connector
for communications interface2 x M12 4-pin D-coded, M12 8-pin (RS422)
at the digital inputs/outputsM12, 12-pin, female connector
number of digital inputs4
number of digital outputs4
mechanical data
materialAluminum, Pocan
colorsilver, TI-Grey
mounting distance / relating to metal surfaces / recommended / minimum0 mm
supply voltage, current consumption, power loss
rated value24 V
20... 30 V
at 24 V / typical0,38 A
at 24 V / maximum2 A
ambient conditions
during operation-25... +55 °C
during storage-40... +85 °C
during transport-40... +85 °C
ambient condition / for operationWith operating temperature below -20 °C: Warming-up time least 10 minutes
protection class IPIP65
shock resistanceEN 60068-2-27, EN 60068-2-6
shock acceleration250 m/s²
vibrational acceleration30 m/s²
resistance to mechanical stressThe maximum values for shock ve vibration acceleration must not occur as continuous stress ve they apply exclusively to assembly using screws
design, dimensions and weights
width258 mm
height258 mm
depth80 mm
net weight2,47 kg
fastening methodVesa 100 with 4 x M4 screws, top-hat rail 35 mm, profile rail S7-300, S7-1200 veya S7-1500
of antenna cable / minimum1 m
of antenna cable / maximum40 m
product features, product functions, product components / general
display versiontwo LED rows with 8 ve 9 LEDs
protocol / is supported / Media Redundancy Protocol (MRP)Var
product function / of the PROFINET IO device / is supported / H-Sync forwardingYok
LLDPVar
PROFINET IO protocolVar
TCP/IPVar
SNMP v1Var
SNMP v2Yok
SNMP v3Var
DCPVar
EtherNet/IP protocolVar
OPC UAVar
product feature / silicon-freeVar
product functions / management, configuration, engineering
type of parameterizationHSP, GSDML, EDS, TO, WBM
type of programmingIdent profile, library with functions, OPC UA, XML
type of computer-switched communicationacyclic communication, TCP/IP
standards, specifications, approvals
certificate of suitabilitywireless acc. to ARIB (STD-T106), OPC UA: embedded UA Server Profile
IECExYok
MTBF29 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total321,37 kg
during manufacturing71,5 kg
during operation249 kg
after end of life0,87 kg
accessories
accessoriesone external antenna, set for mounting on top-hat rail veya profile rail
Aksesuarlar 13
Siemens 6GT2811-6CA10-4AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GT2890-2AB10 | Aksesuar | |
| 6GT2890-2AC00 | Aksesuar | |
| 6GT2891-0PH50 | Aksesuar · Cables · power cables | |
| 6GT2891-4EH50 | Aksesuar · Cables · serial cable | |
| 6GT2898-0AC00 | Aksesuar | |
| 6GT2898-0AC10 | Aksesuar | |
| 6GT2898-0AC20 | Aksesuar | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-4BA00-5AA0 | Aksesuar | |
| 6GT2890-0BC00 | Aksesuar | |
| 6GT2898-4AA10 | Aksesuar | |
| 6GT2002-0EE20 | Genişletme · Identification systems · RFID |
