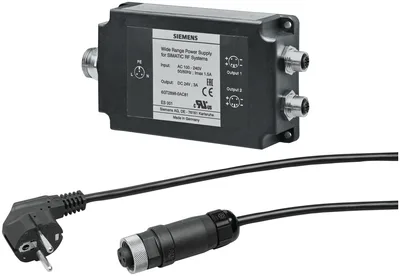

Siemens 6GT2898-0AC00
SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100-240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01.
product brand nameSIMATIC RF
voltage curve / at inputAC single phase
supply voltage / 1 / rated value230 V
supply voltage / 1 / rated value100... 240 V
50 HzVar
60 HzVar
Ürün Hakkında
SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100-240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable/connector CEE 7/7 Consisting of: 1x 6GT28980AC81 1x 6GT28980AC01.
Siemens 6GT2898-0AC00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
type of current supplyInput: 100 to 230 V AC, output: 24 V DC / 3 A
suitability for useTwo readers can be connected directly. Robust ve cast industrial power supply unit with high degree of protection for use directly the process.
electrical data / input
voltage curve / at inputAC single phase
supply voltage / 1 / rated value230 V
supply voltage / 1 / rated value100... 240 V
type of voltage / 1 / of the supply voltageAC
50 HzVar
60 HzVar
electrical data / output
voltage curve / at outputDC 24 V fixed voltage
1 / at DC / rated value24 V
rated value3 A
rated range0... 3,9 A
efficiency in percent90 %
electrical data / closed-loop control
relative overall tolerance / of the voltage2 %
electrical data / protection and monitoring
design of the overvoltage protection / at outputUout nom +20 % tipik
property of the output / short-circuit proofVar
design of short-circuit protectionPermanent
enduring short circuit current / RMS value / maximum3,9 A
electrical data / safety
galvanic isolation / between input and outputVar
galvanic isolationSELV / PELV according to EN 60950
operating resource protection classClass II (protective insulation)
interfaces
for power supply2
at inputSchuko socket CEE 7/7 with 2 m connecting cable
at output2 x M12 4 pin, A-coded, female
signal inputs/outputs
product component / signaling contactYok
design, dimensions and weights
width85 mm
height35 mm
depth175 mm
net weight0,94 kg
fastening method4 screws M5
ambient conditions
during operation-25... +75 °C
during storage-40... +85 °C
during transport-40... +85 °C
notefree convection
protection class IPIP67
standards, specifications, approvals
for safety / from CSA and ULEN 60950 / UL 60950 / CAN/CSA 22,2.950, 3 Edition
for emitted interferenceEN 61000-6-3, EN 55011 (Class B)
accessories
accessories / includedPower supply un...T2898-0AC001
